Adjusting ACL test cases for DNX (J2c+) chipset on a T2 VoQ Chassis by sanjair-git · Pull Request #6390 · sonic-net/sonic-mgmt

sanjair-git · 2022-09-21T21:23:52Z

Description of PR

Summary:
Fixes # (issue)
This PR addresses the following:

Don't skip egress ACL tests cases,
8 ACL tests fail against DNX chipset due to its limitations. But added a fix to have unique source IPV6 and destination IPV6 fields in the ACL rules used.

Type of change

Bug fix
Testbed and Framework(new/improvement)
Test case(new/improvement)

Back port request

201911
202012

Approach

What is the motivation for this PR?

Currently, ACL tests in egress direction are skipped for broadcom based chipsets. However, DNX chipset supports egress and ingress ACL's.
Due to the limitation of DNX chipset with regards to IPv6 src and dst address present in the ACL rule ( BRCM CSP #CS00012257197), 8 tests 'test_icmp_match_forwarded' are throwing errors in counters not incremented for RULE_3.
Hence, we added unique source and destination IPV6 address fields to the ACL rules used for the tests mentioned above.

How did you do it?

Added support for Egress ACL on broadcom-dnx chipset
Added unique 64 bit fields for the destination IPV6 addresses so that source and destination addresses won't match in the ACL rules being used.

How did you verify/test it?

Ran ACL tests against T2 chassis with linecards with J2c+ DNX chipset with PR# #5707 that allows to run ACL tests against a T2 chassis

Any platform specific information?

Supported testbed topology if it's a new test case?

Documentation

linux-foundation-easycla · 2022-09-21T21:23:56Z

The committers listed above are authorized under a signed CLA.

✅ login: sanmalho-git (fedab2ccc0858efa66914a79c65ab1735d264b64, ef4effe0105e5040a53e01e37e4bd7c71ac1b148)
✅ login: sanjair-git (29861b652297482ca121a0c255ef018e0a1c256a)

judyjoseph · 2022-09-28T18:15:13Z

/azp run

azure-pipelines · 2022-09-28T18:15:22Z

Azure Pipelines successfully started running 1 pipeline(s).

tjchadaga · 2022-10-11T01:03:36Z

/azp run

azure-pipelines · 2022-10-11T01:03:44Z

Azure Pipelines successfully started running 1 pipeline(s).

tjchadaga · 2022-10-17T23:28:52Z

tests/common/plugins/conditional_mark/tests_mark_conditions.yaml

@sanjair-git - Since there is workaround for this limitation (sonic-net/sonic-swss#2178), these tests may not need to be skipped. Could you please check and update the PR?

@tjchadaga - the fix in (sonic-net/sonic-swss#2178), allows us to run any of the egress ACL tests against DNX chipset. However, due to the limitation of DNX chipset with regards to IPv6 src and dst address present in the ACL rule ( BRCM CSP #CS00012257197), 8 tests 'test_icmp_match_forwarded' are throwing errors in counters not incremented for RULE_3. Therefore, we have expect these tests to fail on DNX chipset.

@sanmalho-git - Is it possible to tweak the IP address to avoid this conflict with 64-bits?

Added tests that were commented out accidentally

…P CS00012257197

azure-pipelines · 2022-11-08T15:31:31Z

The pre-commit check detected issues in the files touched by this pull request.
The detected issues may be old or new. For new issues, please try to fix them.

For old issues, it is not mandatory to fix them because they were not caused by this change. It is unfair to blame
author of this pull request. But if you can take extra effort to fix the old issues as well, that would be great!

Detailed pre-commit check results:
trim trailing whitespace.................................................Passed fix end of files.........................................................Passed check yaml...........................................(no files to check)Skipped check for added large files..............................................Passed check python ast.........................................................Passed flake8...................................................................Failed - hook id: flake8 - exit code: 1 tests/acl/test_acl.py:416:121: E501 line too long (137 > 120 characters)

To run the pre-commit checks locally, you can follow below steps:

Ensure that default python is python3. In sonic-mgmt docker container, default python is python2. You can run
the check by activating the python3 virtual environment in sonic-mgmt docker container or outside of sonic-mgmt
docker container.
Ensure that the pre-commit package is installed:

sudo pip install pre-commit

Go to repository root folder
Install the pre-commit hooks:

pre-commit install

Use pre-commit to check staged file:

pre-commit

Alternatively, you can check committed files using:

pre-commit run --from-ref <commit_id> --to-ref <commit_id>

sanjair-git · 2022-11-08T19:08:57Z

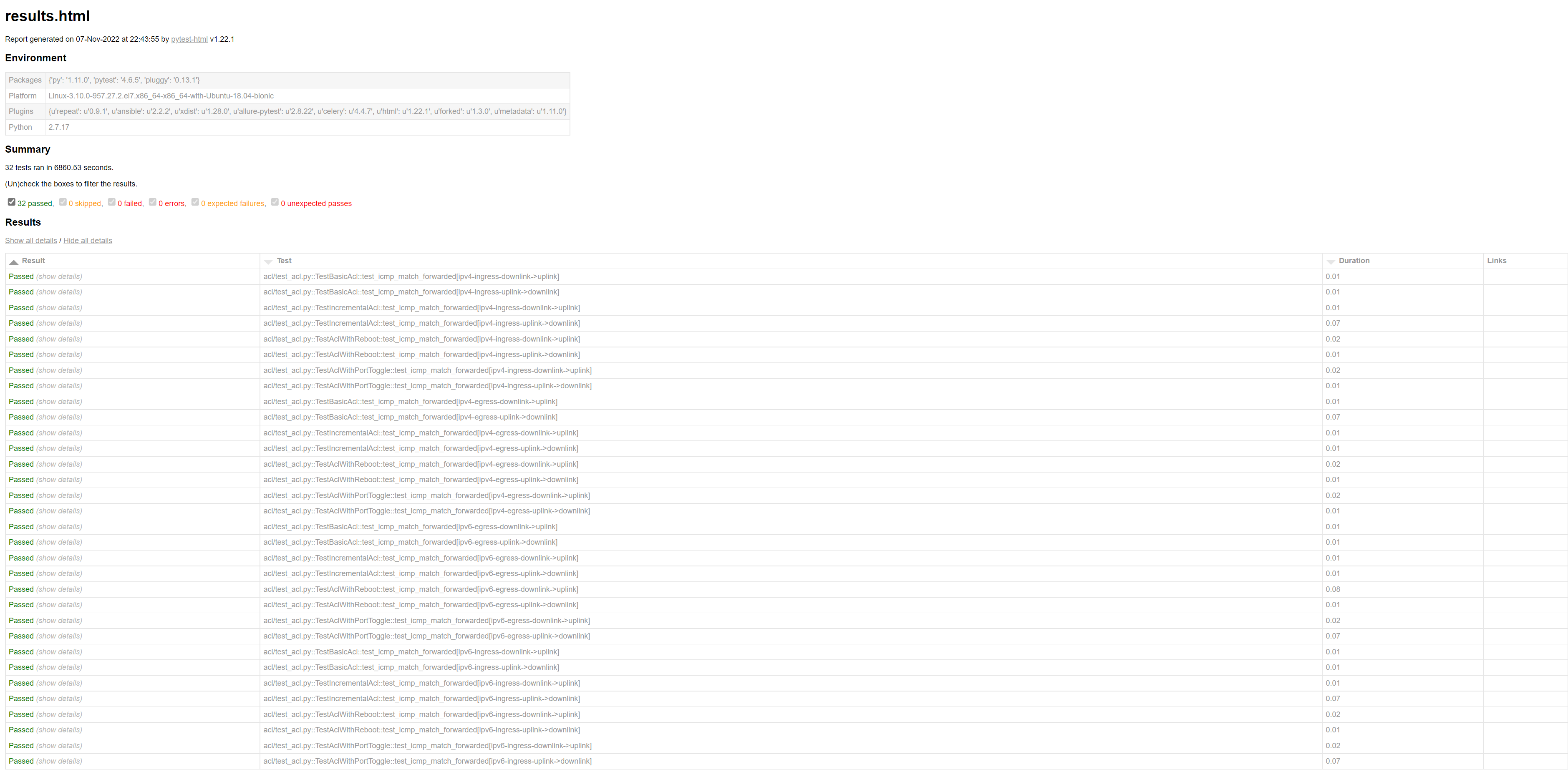

Attaching the test run logs for reference,

icmp_32cases_console.txt

…6390) * Adding xfail for ACL tests that fail on DNX * Supporting egress ACL on broadcom-dnx chipset Added tests that were commented out accidentally * Chaging comment from skipping to ignoring failure * Added unique source and destination IPV6 fields for ACL rules. Ref CSP CS00012257197 Co-authored-by: sanmalho <[email protected]>

…ic-net#6390

… (#6909)

…ic-mgmt into internal-202205 Fix merge conflicts. - [pre-commit] Fix style issues in test scripts under `tests/acl` folder (sonic-net#6679) - Moving check for reboot cause after interface status check (sonic-net#6721) - Adding watchdog timeout values for Cisco 8808 Supervisor and Different LCs (sonic-net#6776) - add Ether check in macsec_dp_poll (sonic-net#6828) - Disable PFC watchdog in test_cpu_memory_usage_counterpoll (sonic-net#6851) - Testcase to verify that lossless traffic is not dropped during congesion. (sonic-net#6853) - Ignore Broadcom sai sai unbind ERR log for now (sonic-net#6539) - [chassis][multi-asic] update the loganalyser regex for multi asic (sonic-net#6885) - [mx] Fix test_acl failed on mx topo (sonic-net#6971) (sonic-net#6983) - [202205][mx] Add support for mx in test_null_route_helper (sonic-net#6967) (sonic-net#6982) - [m0][everflow] Add m0 support for everflow and refactor everflow setup_info (sonic-net#6900) - [ACL] Add acl stress test (sonic-net#6903) - Enhance test_tor_ecn (sonic-net#6906) - Fix erros - Added unique IPV6 address for the missed ACL rules PR sonic-net#6390 (sonic-net#6909) - enabled bfd tests (sonic-net#6919) - Skip bgp speaker test on backend topo (sonic-net#6922) - [advanced-reboot] Handle logs in tmpfs: backup two log files before reboot (sonic-net#6923) - Fix missing definition (sonic-net#6930) - [Mellanox] Add minimal table definition for SN2201 (sonic-net#6943) - Update qos test param for dualtor topology (sonic-net#6948) - fix setup for single asic lc (sonic-net#6951) - Fix QoS sai test for running with python3 (sonic-net#6961) - Don't fail if logrotate cron job file isn't present (sonic-net#6964) - Disable post sanity check for vxlan test (sonic-net#6980) - Merge branch 'azure-202205' into dev/yaqiangzhu/202205_merge

judyjoseph previously approved these changes Sep 28, 2022

View reviewed changes

sanjair-git dismissed judyjoseph’s stale review via 4788780 September 29, 2022 16:21

sanjair-git force-pushed the acl branch from 29861b6 to 4788780 Compare September 29, 2022 16:21

tjchadaga reviewed Oct 17, 2022

View reviewed changes

tjchadaga self-assigned this Oct 27, 2022

sanmalho-git and others added 4 commits November 8, 2022 10:26

Adding xfail for ACL tests that fail on DNX

0f60774

Supporting egress ACL on broadcom-dnx chipset

3e252b6

Added tests that were commented out accidentally

Chaging comment from skipping to ignoring failure

6f5ecfd

Added unique source and destination IPV6 fields for ACL rules. Ref CS…

17aa216

…P CS00012257197

sanjair-git force-pushed the acl branch from 4788780 to 17aa216 Compare November 8, 2022 15:30

tjchadaga approved these changes Nov 8, 2022

View reviewed changes

tjchadaga added chassis Request for 202205 branch labels Nov 8, 2022

tjchadaga merged commit 683589c into sonic-net:master Nov 8, 2022

wangxin added the Included in 202205 branch label Nov 11, 2022

sanjair-git added a commit to sanjair-git/sonic-mgmt that referenced this pull request Nov 28, 2022

Fix erros - Added unique IPV6 address for the missed ACL rules PR son…

dd24c21

…ic-net#6390

sanjair-git mentioned this pull request Nov 28, 2022

Fix erros - Added unique IPV6 address for the missed ACL rules; Ref PR #6390 #6909

Merged

6 tasks

tjchadaga pushed a commit that referenced this pull request Dec 1, 2022

Fix erros - Added unique IPV6 address for the missed ACL rules PR #6390…

e679bc3

… (#6909)

wangxin pushed a commit that referenced this pull request Dec 7, 2022

Fix erros - Added unique IPV6 address for the missed ACL rules PR #6390…

faae536

… (#6909)
