[PROPOSAL] Add support for dynamic code analysis (Sanitizers)

[kbinias]

This PR adds support for Sanitizers:

• AddressSanitizer (for a fast memory error detector)
• LeakSanitizer (for a run-time memory leak detector)
• MemorySanitizer (for a detector of uninitialized reads)
• ThreadSanitizer (for detect data races)

These Sanitizers are based on compiler instrumentation, therefore a rebuild is required in order to use these tools. Sanitizers are implemented in Clang starting 3.1 and GCC starting 4.8 and supported on Linux x86_64 machines. AddressSanitizer and UndefinedBehaviorSanitizer are also available on macOS.

Usage

You can enable the Sanitizers with SANITIZE_ADDRESS, SANITIZE_LEAK, SANITIZE_MEMORY, SANITIZE_THREAD options in your CMake configuration. You can do this by passing e.g. -DSANITIZE_ADDRESS=ON on your command line. The Sanitizers check your program, while it's running.
Only one Sanitizer is allowed in compile time.

Usefully option is halt_on_error e.g. for ThreadSanitizer export TSAN_OPTIONS="halt_on_error=1" to exit after first reported error.

IMO: maybe it would be nice to connect PaddlePaddle CI with these Sanitizers in future.

Documentation

Comprehensive documentation is here https://github.com/google/sanitizers

[luotao1]

What's the difference between Sanitizers and gperftools, we use pprof to detect memory leak. For example, #18372 (comment).

[kbinias]

LeakSanitizer was designed to replace the gperftools Heap Leak Checker and to bring leak detection to Sanitizers users. It is easy to deploy it in PaddlePaddle.
gperftools is a collection of a high-performance multi-threaded malloc() implementation, plus some pretty nifty performance analysis tools. pprof is a tool for visualization and analysis of profiling data.
We will still use both of these tools. Sanitizers are becoming more and more popular tools and give us more possibilities to detect problems in our source code.
With Sanitizers we detected problems with PaddlePaddle memory leak and ngraph : fix for multithreading test_analyzer_image_classification.

"Sanitizers" is a family of dynamic testing tools built into C++ compilers (Clang and GCC):

• AddressSanitizer (ASan): finds memory errors, such as use-after-free, buffer overflows, and leaks.
• MemorySanitizer (MSan): finds uses of uninitialized memory.
• ThreadSanitizer (TSan): finds data races, deadlocks, and other threading bugs.
• We also have UndefinedBehaviorSanitizer: finds other kinds of undefined behavior, such as use of incorrect dynamic type, shift by illegal amount and many others. I skip it in this PR.

Sanitizers are fast, e.g. Valgrind introduced 20x and more slowdown; *San is ~2x slowdown, 1.5x-3x memory overhead.

In paddle/build/third_party there are some projects which use Sanitizers, e.g. gtest, protobuf, mkldnn.

[luotao1]

Thanks very much for your detail explanation!
Could you give an example for how to use Sanitizers? Or is -DSANITIZE_ADDRESS=ON on your command line enough?

[kbinias]

Yes, it is enough to add only one flag to CMake: -DSANITIZE_ADDRESS=ON or -DSANITIZE_LEAK=ON or -DSANITIZE_MEMORY=ON or -DSANITIZE_THREAD=ON.

Important: only one Sanitizer is allowed in compile time.

• Example for AddressSanitizer:
  cmake .. -DWITH_TESTING=ON -DWITH_INFERENCE_API_TEST=ON -DON_INFER=ON -DWITH_PYTHON=ON -DWITH_NGRAPH=OFF -DWITH_GPU=OFF -DSANITIZE_ADDRESS=ON

• Example for ThreadSanitizer:
  cmake .. -DWITH_TESTING=ON -DWITH_INFERENCE_API_TEST=ON -DON_INFER=ON -DWITH_PYTHON=ON -DWITH_NGRAPH=ON -DWITH_GPU=OFF -DSANITIZE_THREAD=ON

• Example for LeakSanitizer:
  cmake .. -DWITH_TESTING=ON -DWITH_INFERENCE_API_TEST=ON -DON_INFER=ON -DWITH_PYTHON=ON -DWITH_NGRAPH=OFF -DWITH_GPU=OFF -DSANITIZE_LEAK=ON

Hint: export an additional environment variable to limit the number of error messages before you run PaddlePaddle, e.g. for AddressSanitizer export ASAN_OPTIONS="halt_on_error=1", for ThreadSanitizer export TSAN_OPTIONS="halt_on_error=1"

[kbinias]

@luotao1 Please don't merge this PR yet, we're still testing Sanitizers in PaddlePaddle.

[luotao1]

Got it. But do we install Sanitizers in latest-dev images by update Dockerfile or do we need a Sanitizers.cmake to install it?

[luotao1]

Could you remove the option, and write like CMAKE_BUILD_TYPE

Paddle/CMakeLists.txt

Lines 83 to 87 in 047bba8

	# CMAKE_BUILD_TYPE
	if(NOT CMAKE_BUILD_TYPE)
	set(CMAKE_BUILD_TYPE "RelWithDebInfo" CACHE STRING
	"Choose the type of build, options are: Debug Release RelWithDebInfo MinSizeRel"
	FORCE)

[kbinias]

You don't need Sanitizers.cmake file to include Sanitizers support in PaddlePaddle, it is built in gcc compiler.
I moved many options to one option SANITIZER_TYPE.

[luotao1]

it is built in gcc compiler.

Does gcc48 support it?

[kbinias]

Yes, it's a part of GCC starting from version 4.8

[kbinias]

Now, to use sanitizer we have only one CMake option SANITIZER_TYPE with different values (Address, Leak, Memory, Thread, Undefined), e.g.:
cmake .. -DWITH_TESTING=ON -DWITH_PYTHON=ON -DWITH_GPU=OFF -DSANITIZER_TYPE="Thread"

Notice: Undefined is undefined behavior detector (UndefinedBehaviorSanitizer).

[luotao1]

@zhupengyang Could you verify the build command in #18303 (comment)?

cmake .. -DWITH_TESTING=ON -DWITH_PYTHON=ON -DWITH_GPU=OFF -DSANITIZER_TYPE="Thread"

[zhupengyang]

@zhupengyang Could you verify the build command in #18303 (comment)?

cmake .. -DWITH_TESTING=ON -DWITH_PYTHON=ON -DWITH_GPU=OFF -DSANITIZER_TYPE="Thread"

commit id: 3ac4715

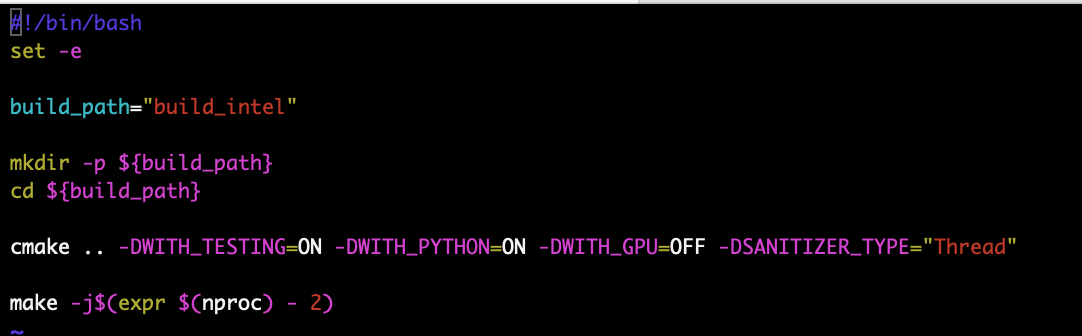

build shell:

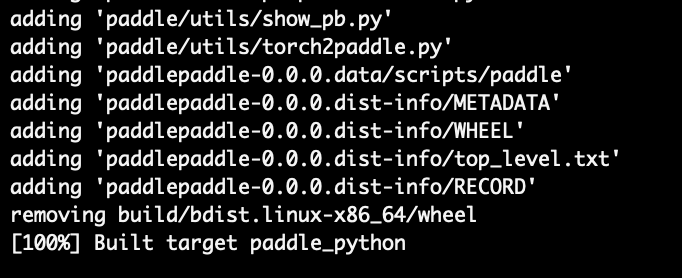

build result:

Verification conclusion: the build command is workable.
@luotao1

[luotao1]

LGTM
