eeprom: at2x: Add support for at24cXX by kurddt · Pull Request #29046 · zephyrproject-rtos/zephyr

kurddt · 2020-10-08T09:50:52Z

Those devices can use several I2C address in order to address more
than 256 Bytes using 8bit addressing. Also several physical component
can be used as a contiguous memory.

Alternative to #21170

Signed-off-by: Guillaume Lager guillaume.lager@gmail.com

dts/bindings/mtd/eeprom-spi-i2c.yaml

drivers/eeprom/eeprom_at2x.c

kurddt · 2020-10-21T09:13:51Z

I also made (what I think are) correction to some of the indentation

drivers/eeprom/eeprom_at2x.c

Those devices can use several I2C address in order to address more than 256 Bytes using 8bit addressing. Also several physical component can be used as a contiguous memory. Signed-off-by: Guillaume Lager <guillaume.lager@gmail.com>

KwonTae-young · 2020-10-26T07:57:38Z

I have a board with AT24C04 applied.

&i2c1 {
	clock-frequency = <400000>;
	status = "ok";

	eeprom: eeprom@50 {
		compatible = "atmel,at24";
		reg = <0x50>;
		label = "EEPROM";
		size = <512>;
		pagesize = <16>;
		address-width = <9>;
		timeout = <10>;
	};
};

When compiling, the following error occurs

/work/at24x_test/zephyr/include/toolchain/gcc.h:62:36: error: static assertion failed: "Unsupported address width"
   62 | #define BUILD_ASSERT(EXPR, MSG...) _Static_assert(EXPR, "" MSG)
      |                                    ^~~~~~~~~~~~~~

As of now, only AT24C02 seems to be supported.
Will AT24C04 support be excluded from this PR?

kurddt · 2020-10-26T08:10:01Z

That's expected, the address width is either 8 or 16. Setting the size to 512 is enough to handle the AT24C04 correctly

KwonTae-young · 2020-10-26T09:38:59Z

@kurddt I did a simple test.
There seems to be a bit of a problem in the current PR.
I tested it with the AT24C04.

test source

/*
 * Copyright (c) 2012-2014 Wind River Systems, Inc.
 *
 * SPDX-License-Identifier: Apache-2.0
 */

#include <zephyr.h>
#include <sys/printk.h>
#include <device.h>
#include <drivers/eeprom.h>

#define LOG_LEVEL CONFIG_LOG_DEFAULT_LEVEL
#include <logging/log.h>
LOG_MODULE_REGISTER(test);

void main(void)
{
	const struct device *eeprom;
	size_t eeprom_size;
	const uint8_t wr_buf[17] = {0x00, 0x01, 0x2, 0x03, 0x04, 0x05, 0x06, 0x07,
				0x08, 0x09, 0x0A, 0x0B, 0x0C, 0x0D, 0x0E, 0x0F,
				0x10};
	uint8_t rd_buf[17] = {0x00, };
	int ret;

	/* EEPROM */
	eeprom = device_get_binding(DT_LABEL(DT_ALIAS(eeprom_0)));
	if (!eeprom) {
		LOG_ERR("Cannot get EEPROM device");
		return;
	}

	eeprom_size = eeprom_get_size(eeprom);
	LOG_INF("eeprom_size: %d", eeprom_size);

	/* 8-biyte read/write */
	ret = eeprom_write(eeprom, 0, wr_buf, 8);
	if (ret) {
		LOG_ERR("eeprom_write() failed.");
		return;
	}

	memset(rd_buf, 0, sizeof(rd_buf));
	ret = eeprom_read(eeprom, 0, rd_buf, 8);
	if (ret) {
		LOG_ERR("eeprom_write() failed.");
		return;
	}

	if (memcmp(wr_buf, rd_buf, 8)) {
		LOG_ERR("8-byte write, read mismatch.");
		LOG_HEXDUMP_ERR(wr_buf, 8, "wr_buf");
		LOG_HEXDUMP_ERR(rd_buf, 8, "rd_buf");
	}

	/* 12-biyte read/write */
	ret = eeprom_write(eeprom, 0, wr_buf, 12);
	if (ret) {
		LOG_ERR("eeprom_write() failed.");
		return;
	}

	memset(rd_buf, 0, sizeof(rd_buf));
	ret = eeprom_read(eeprom, 0, rd_buf, 12);
	if (ret) {
		LOG_ERR("eeprom_write() failed.");
		return;
	}

	if (memcmp(wr_buf, rd_buf, 12)) {
		LOG_ERR("12-byte write, read mismatch.");
		LOG_HEXDUMP_ERR(wr_buf, 12, "wr_buf");
		LOG_HEXDUMP_ERR(rd_buf, 12, "rd_buf");
	}


	/* 16-biyte read/write */
	ret = eeprom_write(eeprom, 0, wr_buf, 16);
	if (ret) {
		LOG_ERR("eeprom_write() failed.");
		return;
	}

	memset(rd_buf, 0, sizeof(rd_buf));
	ret = eeprom_read(eeprom, 0, rd_buf, 16);
	if (ret) {
		LOG_ERR("eeprom_write() failed.");
		return;
	}

	if (memcmp(wr_buf, rd_buf, 16)) {
		LOG_ERR("16-byte write, read mismatch.");
		LOG_HEXDUMP_ERR(wr_buf, 16, "wr_buf");
		LOG_HEXDUMP_ERR(rd_buf, 16, "rd_buf");
	}

	/* 17-biyte read/write */
	ret = eeprom_write(eeprom, 0, wr_buf, 17);
	if (ret) {
		LOG_ERR("eeprom_write() failed.");
		return;
	}

	memset(rd_buf, 0, sizeof(rd_buf));
	ret = eeprom_read(eeprom, 0, rd_buf, 17);
	if (ret) {
		LOG_ERR("eeprom_write() failed.");
		return;
	}

	if (memcmp(wr_buf, rd_buf, 17)) {
		LOG_ERR("17-byte write, read mismatch.");
		LOG_HEXDUMP_ERR(wr_buf, 17, "wr_buf");
		LOG_HEXDUMP_ERR(rd_buf, 17, "rd_buf");
	}

	LOG_INF("EEPROM Test End!");

	return;
}

1. Current PR(address-width = <16>)

&i2c1 {
	clock-frequency = <400000>;
	status = "ok";

	eeprom: eeprom@50 {
		compatible = "atmel,at24";
		reg = <0x50>;
		label = "EEPROM";
		size = <512>;
		pagesize = <16>;
		address-width = <16>;
		timeout = <10>;
	};
};

console

[00:00:00.005,000] <inf> test: eeprom_size: 512
[00:00:00.017,000] <err> test: 16-byte write, read mismatch.
[00:00:00.017,000] <err> test: wr_buf
00 01 02 03 04 05 06 07  08 09 0a 0b 0c 0d 0e 0f |........ ........
[00:00:00.017,000] <err> test: rd_buf
00 01 02 03 04 05 06 07  08 09 0a 0b 0c 0d 0e 10 |........ ........
[00:00:00.025,000] <err> test: 17-byte write, read mismatch.
[00:00:00.025,000] <err> test: wr_buf
00 01 02 03 04 05 06 07  08 09 0a 0b 0c 0d 0e 0f |........ ........
10                                               |.
[00:00:00.025,000] <err> test: rd_buf
10 01 02 03 04 05 06 07  08 09 0a 0b 0c 0d 0e 10 |........ ........
10                                               |.
[00:00:00.025,000] <inf> test: EEPROM Test End!

2. Other PR(address-width = <9>)

PR: #21170

&i2c1 {
	clock-frequency = <400000>;
	status = "ok";

	eeprom: eeprom@50 {
		compatible = "atmel,at24";
		reg = <0x50>;
		label = "EEPROM";
		size = <512>;
		pagesize = <16>;
		address-width = <9>;
		timeout = <10>;
	};
};

console

[00:00:00.003,000] <inf> test: eeprom_size: 512
[00:00:00.023,000] <inf> test: EEPROM Test End!

kurddt · 2020-10-26T10:35:43Z

@KwonTae-young The address-width is meant to be used as the word address width, for AT24C04 it's 8 bit. It needs to be set to 16 for chips like AT24CM01.

Basically 8 means 1 byte address will be sent on the I2C bus after the device addressing. When set to 16, 2 bytes of address are sent

KwonTae-young · 2020-10-27T01:35:48Z

@kurddt I confirmed that it works with the address-width set to 8.

/ {
	aliases {
		eeprom-0 = &eeprom;
	};
};

&i2c1 {
	clock-frequency = <400000>;
	status = "ok";

	eeprom: eeprom@50 {
		compatible = "atmel,at24";
		reg = <0x50>;
		label = "EEPROM";
		size = <512>;
		pagesize = <16>;
		address-width = <8>;
		timeout = <10>;
	};
};

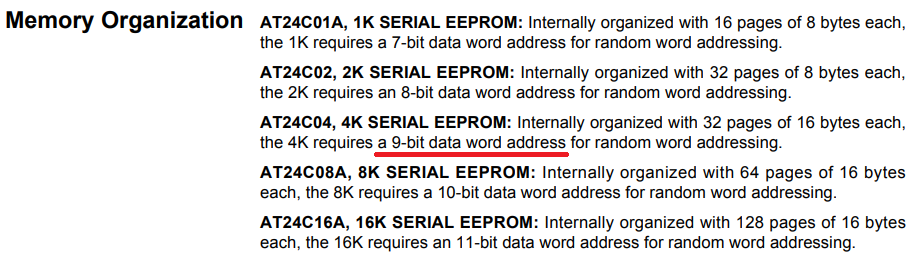

I thought the address-width should be 9-bit as shown in the datasheet.

Some people think it can be confusing.
First of all it works well. 😄

EDIT: I confirmed that Linux kenrel is also handling the same as this PR.
It was my misunderstanding.
https://github.com/torvalds/linux/blob/master/drivers/misc/eeprom/at24.c#L626-L642

kurddt · 2020-10-27T08:45:50Z

Yes I looked at the Linux kernel to get inspiration on how to deal with that.

@KwonTae-young If you have a suggestion to make the address-width description more clear please go ahead

henrikbrixandersen

Looks good. Thanks!

kurddt · 2020-10-28T08:06:59Z

Might be good to remove the "Device Tree" and "Device Tree bindings" tags since they are not relevant anymore. I seems that I can't do that myself
