[sfp-refactoring] Initial support for CMIS application initialization

sonic_platform_base/sfp_base.py

@@ -17,6 +17,12 @@ class SfpBase(device_base.DeviceBase):
     # Device type definition. Note, this is a constant.
     DEVICE_TYPE = "sfp"

+    # SFP port type. Please note this is the cage type rather than transceiver type.
+    SFP_PORT_TYPE_UNSPECIFIED = "UNSPECIFIED"
+    SFP_PORT_TYPE_SFP         = "SFP"
+    SFP_PORT_TYPE_QSFP        = "QSFP"
+    SFP_PORT_TYPE_QSFPDD      = "QSFP_DD"
+
     # Generic error types definition
     SFP_STATUS_INITIALIZING                         = 'Initializing'
     SFP_STATUS_OK                                   = 'OK'
@@ -59,6 +65,14 @@ def __init__(self):
         self._xcvr_api_factory = XcvrApiFactory(self.read_eeprom, self.write_eeprom)
         self._xcvr_api = None

+    def get_port_type(self):
+        """
+        Retrieves the port/cage type of this SFP
+        Returns:
+            A string, the port/cage type of this SFP
+        """
+        return self.SFP_PORT_TYPE_UNSPECIFIED
+
     def get_num_thermals(self):
         """
         Retrieves the number of thermals available on this SFP

sonic_platform_base/sonic_xcvr/api/public/cmis.py

@@ -8,7 +8,9 @@
 from ...fields import consts
 from ..xcvr_api import XcvrApi

+import ast
 import logging
+from ...codes.public.cmis import CmisCodes
 from ...fields import consts
 from ..xcvr_api import XcvrApi
 from .cmisCDB import CmisCdbApi
@@ -135,8 +137,7 @@ def get_transceiver_info(self):
             "specification_compliance": admin_info[consts.MEDIA_TYPE_FIELD],
             "vendor_date": admin_info[consts.VENDOR_DATE_FIELD],
             "vendor_oui": admin_info[consts.VENDOR_OUI_FIELD],
-            # TODO
-            "application_advertisement": "N/A",
+            "application_advertisement": admin_info.get(consts.APPLS_ADVT_FIELD, "N/A")
         }
         xcvr_info['host_electrical_interface'] = self.get_host_electrical_interface()
         xcvr_info['media_interface_code'] = self.get_module_media_interface()
@@ -903,6 +904,9 @@ def set_lpmode(self, lpmode):

         lpmode_val = self.xcvr_eeprom.read(consts.MODULE_LEVEL_CONTROL)
         if lpmode_val is not None:
+            # Turn on software control mode

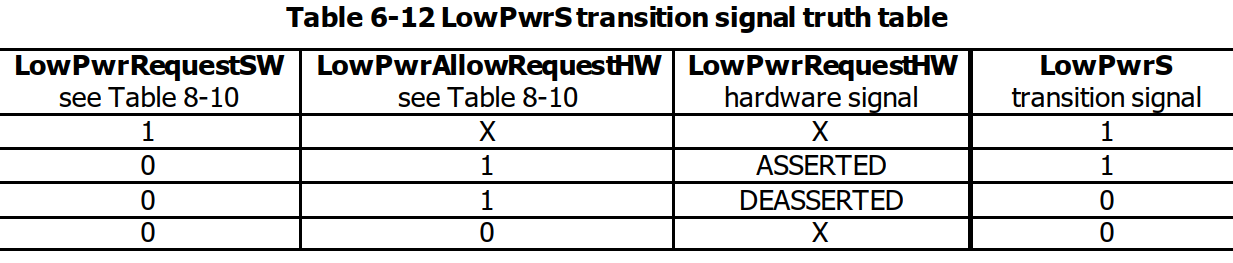

+            if self.xcvr_eeprom.read(consts.CMIS_MAJOR_REVISION) >= 4:
+                lpmode_val = lpmode_val & ~(1 << 6) # LowPwrAllowRequestHW
             if lpmode is True:
                 lpmode_val = lpmode_val | (1 << 4)
                 self.xcvr_eeprom.write(consts.MODULE_LEVEL_CONTROL, lpmode_val)
@@ -914,7 +918,7 @@ def set_lpmode(self, lpmode):
                 time.sleep(1)
                 lpmode = self.xcvr_eeprom.read(consts.TRANS_MODULE_STATUS_FIELD)
                 if lpmode is not None:
-                    if lpmode.get('ModuleState') == 'ModuleReady':
+                    if lpmode.get('ModuleState') in ['ModulePwrUp', 'ModuleReady']:
                         return True
                 return False
         return False
@@ -1745,4 +1749,296 @@ def get_transceiver_loopback(self):
             for lane in range(1, self.NUM_CHANNELS+1):
                 trans_loopback['host_input_loopback_lane%d' % lane] = 'N/A'
         return trans_loopback
+
+    def set_datapath_init(self, host_lanemask):
+        """
+        Put the datapath into the initialized state
+
+        Args:
+            host_lanemask: Integer, a bitmask of the lanes on the system/host side
+                           e.g. 0x5 for lane 0 and lane 2.
+
+        Returns:
+            Boolean, true if success otherwise false
+        """
+        cmis_major = self.xcvr_eeprom.read(consts.CMIS_MAJOR_REVISION)
+        data = self.xcvr_eeprom.read(consts.DATAPATH_DEINIT_FIELD)
+        for lane in range(self.NUM_CHANNELS):
+            if (1 << lane) & host_lanemask == 0:
+                continue
+            if cmis_major >= 4: # CMIS v4 onwards
+                data &= ~(1 << lane)
+            else:               # CMIS v3
+                data |= (1 << lane)
+        self.xcvr_eeprom.write(consts.DATAPATH_DEINIT_FIELD, data)
+
+    def set_datapath_deinit(self, host_lanemask):
+        """
+        Put the datapath into the de-initialized state
+
+        Args:
+            host_lanemask: Integer, a bitmask of the lanes on the system/host side
+                           e.g. 0x5 for lane 0 and lane 2.
+
+        Returns:
+            Boolean, true if success otherwise false
+        """
+        cmis_major = self.xcvr_eeprom.read(consts.CMIS_MAJOR_REVISION)
+        data = self.xcvr_eeprom.read(consts.DATAPATH_DEINIT_FIELD)
+        for lane in range(self.NUM_CHANNELS):
+            if (1 << lane) & host_lanemask == 0:
+                continue
+            if cmis_major >= 4: # CMIS v4 onwards
+                data |= (1 << lane)
+            else:               # CMIS v3
+                data &= ~(1 << lane)
+        self.xcvr_eeprom.write(consts.DATAPATH_DEINIT_FIELD, data)
+
+    def get_host_speed(self, ifname):
+        """
+        Get the port speed from the host interface name
+
+        Args:
+            ifname: String, host interface name
+
+        Returns:
+            Integer, the port speed if success otherwise 0
+        """
+        # see HOST_ELECTRICAL_INTERFACE of sff8024.py
+        speed = 0
+        if '400G' in ifname:
+            speed = 400000
+        elif '200G' in ifname:
+            speed = 200000
+        elif '100G' in ifname or 'CAUI-4' in ifname:
+            speed = 100000
+        elif '50G' in ifname or 'LAUI-2' in ifname:
+            speed = 50000
+        elif '40G' in ifname or 'XLAUI' in ifname or 'XLPPI' in ifname:
+            speed = 40000
+        elif '25G' in ifname:
+            speed = 25000
+        elif '10G' in ifname or 'SFI' in ifname or 'XFI' in ifname:
+            speed = 10000
+        elif '1000BASE' in ifname:
+            speed = 1000
+        return speed
+
+    def get_cmis_state(self):
+        """
+        Get the CMIS states
+
+        Returns:
+            Dictionary, the states of module, config error and datapath
+        """
+        state = {
+            'module_state': self.get_module_state(),
+            'config_state': self.get_config_datapath_hostlane_status(),
+            'datapath_state': self.get_datapath_state()
+        }
+        return state
+
+    def get_cmis_application_selected(self, host_lane):
+        """
+        Get the CMIS selected application code of a host lane
+
+        Args:
+            host_lane:
+                Integer, the lane id on the host/system side
+
+        Returns:
+            Integer, the transceiver-specific application code
+        """
+        ap_code = 0
+        if host_lane in range(self.NUM_CHANNELS) and not self.is_flat_memory():
+            field = "{}_{}_{}".format(consts.STAGED_CTRL_APSEL_FIELD, 0, host_lane + 1)
+            ap_code = self.xcvr_eeprom.read(field) >> 4
+
+        return (ap_code & 0xf)
+
+    def get_cmis_application_matched(self, host_speed, host_lanemask):
+        """
+        Get the CMIS application code that matches the specified host side configurations
+
+        Args:
+            host_speed:
+                Integer, the port speed of the host interface
+            host_lanemask:
+                Integer, a bitmask of the lanes on the host side
+                e.g. 0x5 for lane 0 and lane 2.
+
+        Returns:
+            Integer, the transceiver-specific application code
+        """
+        if host_speed == 0 or host_lanemask == 0:
+            return 0
+
+        host_lane_count = 0
+        for lane in range(self.NUM_CHANNELS):
+            if (1 << lane) & host_lanemask == 0:
+                continue
+            host_lane_count += 1
+
+        appl_code = 0
+        appl_dict = self.xcvr_eeprom.read(consts.APPLS_ADVT_FIELD)
+        if appl_dict is None or appl_dict.strip() in ["None", "{}", ""]:
+            return 0
+        appl_dict = ast.literal_eval(appl_dict)
+        for c in appl_dict.keys():
+            d = appl_dict[c]
+            if d.get('host_lane_count') != host_lane_count:
+                continue
+            if self.get_host_speed(d.get('host_electrical_interface_id')) != host_speed:
+                continue
+            appl_code = c
+            break
+
+        return (appl_code & 0xf)
+
+    def has_cmis_application_update(self, host_speed, host_lanemask):
+        """
+        Check for CMIS application update and retrieve the new application code
+
+        Args:
+            host_speed:
+                Integer, the port speed of the host interface
+            host_lanemask:
+                Integer, a bitmask of the lanes on the host side
+                e.g. 0x5 for lane 0 and lane 2.
+
+        Returns:
+            (has_update, new_appl)
+        """
+        if host_speed == 0 or host_lanemask == 0 or self.is_flat_memory():
+            return (False, 1)
+
+        app_new = self.get_cmis_application_matched(host_speed, host_lanemask)
+        if app_new != 1 or host_lanemask != (1 << self.NUM_CHANNELS) - 1:
+            logger.info("Non-default application is not supported")
+            return (False, 1)
+
+        app_old = 0
+        for lane in range(self.NUM_CHANNELS):
+            if (1 << lane) & host_lanemask == 0:
+                continue
+            if app_old == 0:
+                app_old = self.get_cmis_application_selected(lane)
+            elif app_old != self.get_cmis_application_selected(lane):
+                logger.info("Not all the lanes are in the same application mode")
+                logger.info("Forcing application update...")
+                return (True, app_new)
+
+        if app_old == app_new:
+            skip = True
+            dp_state = self.get_datapath_state()
+            conf_state = self.get_config_datapath_hostlane_status()
+            for lane in range(self.NUM_CHANNELS):
+                if (1 << lane) & host_lanemask == 0:
+                    continue
+                name = "DP{}State".format(lane + 1)
+                if dp_state[name] != CmisCodes.DATAPATH_STATE[4]:
+                    skip = False
+                    break
+                name = "ConfigStatusLane{}".format(lane + 1)
+                if conf_state[name] != CmisCodes.CONFIG_STATUS[1]:
+                    skip = False
+                    break
+            if skip:
+                return (False, app_old)
+
+        return (True, app_new)
+
+    def set_cmis_application_stop(self, host_lanemask):
+        """
+        Deinitialize the datapath and turn off Tx power to the associated line lanes
+
+        Args:
+            host_lanemask:
+                Integer, a bitmask of the lanes on the host side
+                e.g. 0x5 for lane 0 and lane 2.
+
+        Returns:
+            Boolean, true if success otherwise false
+        """
+        # D.2.2 Software Deinitialization
+        self.set_datapath_deinit(host_lanemask)
+        self.set_lpmode(True)
+
+        # D.1.3 Software Configuration and Initialization
+        self.tx_disable_channel(host_lanemask, True)
+        self.set_lpmode(False)
+        return True
+
+    def set_cmis_application_apsel(self, host_lanemask, appl_code):
+        """
+        Update the selected application code to the specified host lanes
+
+        Args:
+            host_lanemask:
+                Integer, a bitmask of the lanes on the host side
+                e.g. 0x5 for lane 0 and lane 2.
+            appl_code:
+                Integer, the desired application code
+
+        Returns:
+            Boolean, true if success otherwise false
+        """
+        # Update the application selection
+        for lane in range(self.NUM_CHANNELS):
+            if (1 << lane) & host_lanemask == 0:
+                continue
+            addr = "{}_{}_{}".format(consts.STAGED_CTRL_APSEL_FIELD, 0, lane + 1)
+            data = appl_code << 4
+            self.xcvr_eeprom.write(addr, data)
+
+        # Apply DataPathInit
+        return self.xcvr_eeprom.write("%s_%d" % (consts.STAGED_CTRL_APPLY_DPINIT_FIELD, 0), host_lanemask)
+
+    def set_cmis_application_start(self, host_lanemask):
+        """
+        Initialize the datapath associated with the specified host lanes, while the Tx power
+        state of the line side will not be updated.
+
+        Args:
+            host_lanemask:
+                Integer, a bitmask of the lanes on the host side
+                e.g. 0x5 for lane 0 and lane 2.
+
+        Returns:
+            Boolean, true if success otherwise false
+        """
+        return self.set_datapath_init(host_lanemask)
+
+    def set_cmis_application_txon(self, host_lanemask):
+        """
+        Turn on Tx power of the lanes on the line side associated with the specified host lanes
+
+        Args:
+            host_lanemask:
+                Integer, a bitmask of the lanes on the host side
+                e.g. 0x5 for lane 0 and lane 2.
+
+        Returns:
+            Boolean, true if success otherwise false
+        """
+        self.tx_disable_channel(host_lanemask, False)
+
+    def get_error_description(self):
+        dp_state = self.get_datapath_state()
+        conf_state = self.get_config_datapath_hostlane_status()
+        for lane in range(self.NUM_CHANNELS):
+            name = "DP{}State".format(lane + 1)
+            if dp_state[name] != CmisCodes.DATAPATH_STATE[4]:
+                return dp_state[name]
+
+            name = "ConfigStatusLane{}".format(lane + 1)
+            if conf_state[name] != CmisCodes.CONFIG_STATUS[1]:
+                return conf_state[name]
+
+        state = self.get_module_state()
+        if state != CmisCodes.MODULE_STATE[3]:
+            return state
+
+        return None
+
     # TODO: other XcvrApi methods

sonic_platform_base/sonic_xcvr/api/public/cmisCDB.py

@@ -26,7 +26,7 @@ def __init__(self, xcvr_eeprom):
         super(CmisCdbApi, self).__init__(xcvr_eeprom)
         self.cdb_instance_supported = self.xcvr_eeprom.read(consts.CDB_SUPPORT)
         self.failed_status_dict = self.xcvr_eeprom.mem_map.codes.CDB_FAIL_STATUS
-        assert self.cdb_instance_supported != 0
+        #assert self.cdb_instance_supported != 0

     def cdb1_chkflags(self):
         '''
