BUG: One Of / Any Of expanders are not rendered if level greater than schema-expand-level in schema-tree

[jurijzahn8019]

Hi there, i discovered this misbehavior

given schema:

openapi: 3.0.3
info:
  title: Test
  description: test
  version: 1.0.0
servers:
  - url: 'http://localhost:9000'
    description: Local server
paths:
  /test:
    get:
      parameters:
        - name: env
          in: path
          schema:
            type: string
            enum: [prod, dev]
            default: production
          example: qa
      responses:
        '200':
          description: 'ok'
          content:
            application/json:
              schema:
                allOf:
                  - type: object
                    properties:
                      theFoo:
                        allOf:
                        - type: object
                        - anyOf:
                          - type: object
                            properties:
                              foo:
                                type: string
                          - type: object
                            properties:
                              bar:
                                type: number


and markup:

<rapi-doc
    id = "thedoc"
    spec-url="./specs/temp.yaml"
    allow-server-selection = "false"
    show-header = "false"
    show-info	= "true"
    theme = "light"
    allow-try = "true"
    sort-endpoints-by = "summary"
    allow-api-list-style-selection = "false"
    regular-font = 'Open Sans'
    schema-style = 'tree'
    render-style = 'focused'
    default-schema-tab = "model"
    schema-expand-level="1"
  ></rapi-doc>

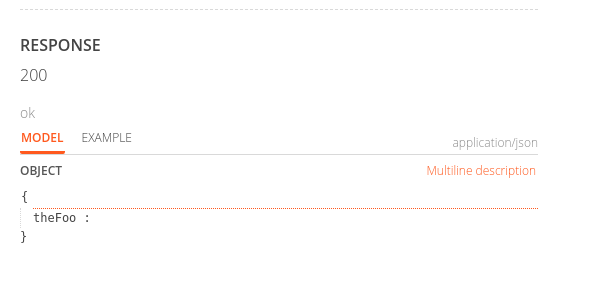

Settings schema-expand-level="1" and schema-style = 'tree' ends up in this:

In Schema Table everything works.

I have fixed this by changing

https://github.com/mrin9/RapiDoc/blob/master/src/components/schema-tree.js#L133

// From
if (data['::type'] === 'object') {

// To
if (data['::type'] === 'object' || (typeof data['::type'] === "string"  && data['::type'].startsWith("xxx-of"))) {

however i do not know whether it is correct solution.
I would be happy to see this fixed

kind regards
and thank you for a great tool!

[mrin9]

thanks for digging this up and suggesting a solution.
I have added couple of other things on top of the fix you proposed.

I have now included a test case for this, which you can find it here https://mrin9.github.io/RapiDoc/examples/xxx-of-nesting-with-expand-level.html

if you are interested in looking up the fix ... here is the commit 2b43e51

[jurijzahn8019]

Yeah, already took a look into commit. Looks great. Thank you! Can't wait to see this released 😄
