Conditional formatting hides the adjacent borders #200

@partomatl

Description

@partomatl

Description

Whenever a conditional format is set on a cell and the criterion is met, then this cell "hides" the adjacent borders.

Steps to reproduce the issue:

  1. Set a conditional format on a cell so that its criterion is met.
  2. Watch how it hides the adjacent borders.

Use this code:

xlsx.SetCellValue("Sheet1", "C20", 20)
style, err := xlsx.NewConditionalStyle(`{"font":{"color":"#09600B"}}`)
if err != nil {
	panic(err)
}
xlsx.SetConditionalFormat("Sheet1", "C20:C20", fmt.Sprintf(`[{"type":"cell","criteria":">","format":%d,"value":"0"}]`, style))

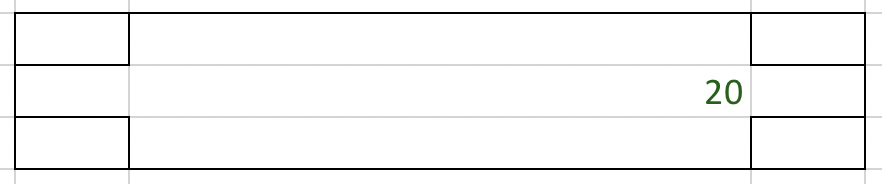

Describe the results you received:

The cell C20 hides the adjacent borders.
capture d ecran 2018-03-28 a 19 17 12

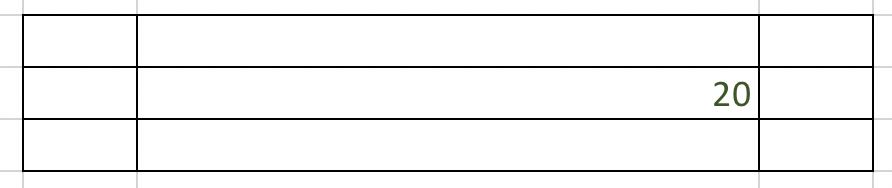

Describe the results you expected:
capture d ecran 2018-03-28 a 19 17 08

Output of go version:

go version go1.10 darwin/amd64

Excelize version or commit ID:

Commit ID: 9d7b94d760126aa51485d7d864b1b98a8720017c

Environment details (OS, Microsoft Excel™ version, physical, etc.):
macOS High Sierra 10.13.3, Microsoft Excel 2016 for Mac 16.9

Thank you for your work!
