Connecting the Dots

🚀 Revolutionary PDF Analysis Platform

Transform how you interact with documents using cutting-edge AI technology. This platform combines advanced document analysis, AI-powered insights, and interactive features to deliver an unparalleled PDF exploration experience. Upload PDFs, navigate through intelligent table of contents, ask AI questions using RAG (Retrieval-Augmented Generation), and generate podcasts from selected text—all in one powerful, seamless interface.

🔥 Built for the future of document intelligence - leveraging state-of-the-art AI to unlock hidden insights in your PDFs.

🎬 Demo

🎥 Click here to watch our demo video showcasing all the key features in action.

⚡ Game-Changing Features

• 🔍 Smart PDF Viewer: Pan, zoom, rotate, annotate with professional drawing tools
• 🤖 AI-Powered Chat: Ask complex questions about your documents using advanced RAG
• 🎧 Podcast Generation: Convert selected text into engaging conversational audio
• 📚 Intelligent TOC: Auto-generated table of contents using YOLO-based layout detection
• 💡 Context-Aware Insights: Get intelligent analysis of highlighted content
• 📁 Multi-Document Management: Switch between multiple uploaded PDFs seamlessly
• 🎨 Rich Annotations: Draw, highlight, and markup documents with customizable tools

🛠 Cutting-Edge Tech Stack

Frontend

• React 18+ (Create React App)
• Tailwind CSS for modern styling
• Lucide React for icons
• react-pdf & pdfjs-dist for PDF rendering

Backend

• Flask (Python 3.10+)
• Advanced RAG Implementation with vector embeddings
• Azure OpenAI Text-to-Speech for podcast generation
• Custom YOLO for document layout detection
• OpenAI/LLM integration for AI features
• Custom hybrid RAG + SLM-LLM pipeline for accurate responses

🔄 Intelligent Workflow

• 📤 Upload PDF → File is stored in the backend, indexed into the RAG database, and a small language model (SLM) extracts Top-K relevant sections.
• 🎯 Anchor Text → When a user selects text in the PDF, a RAG query fetches Top-K matching contexts, which are passed to the LLM (RAG) to generate an answer.
• 🎙️ Generate Podcast → On podcast click, the Top-K contexts are fed into an LLM with a podcast prompt, and the script is converted into audio using Azure OpenAI TTS.
• 💬 Chat → User queries trigger a RAG search; if confidence ≥ threshold, the answer comes from the RAG LLM; otherwise, a precomputed summary of all PDFs is given to a general LLM for a fallback response.

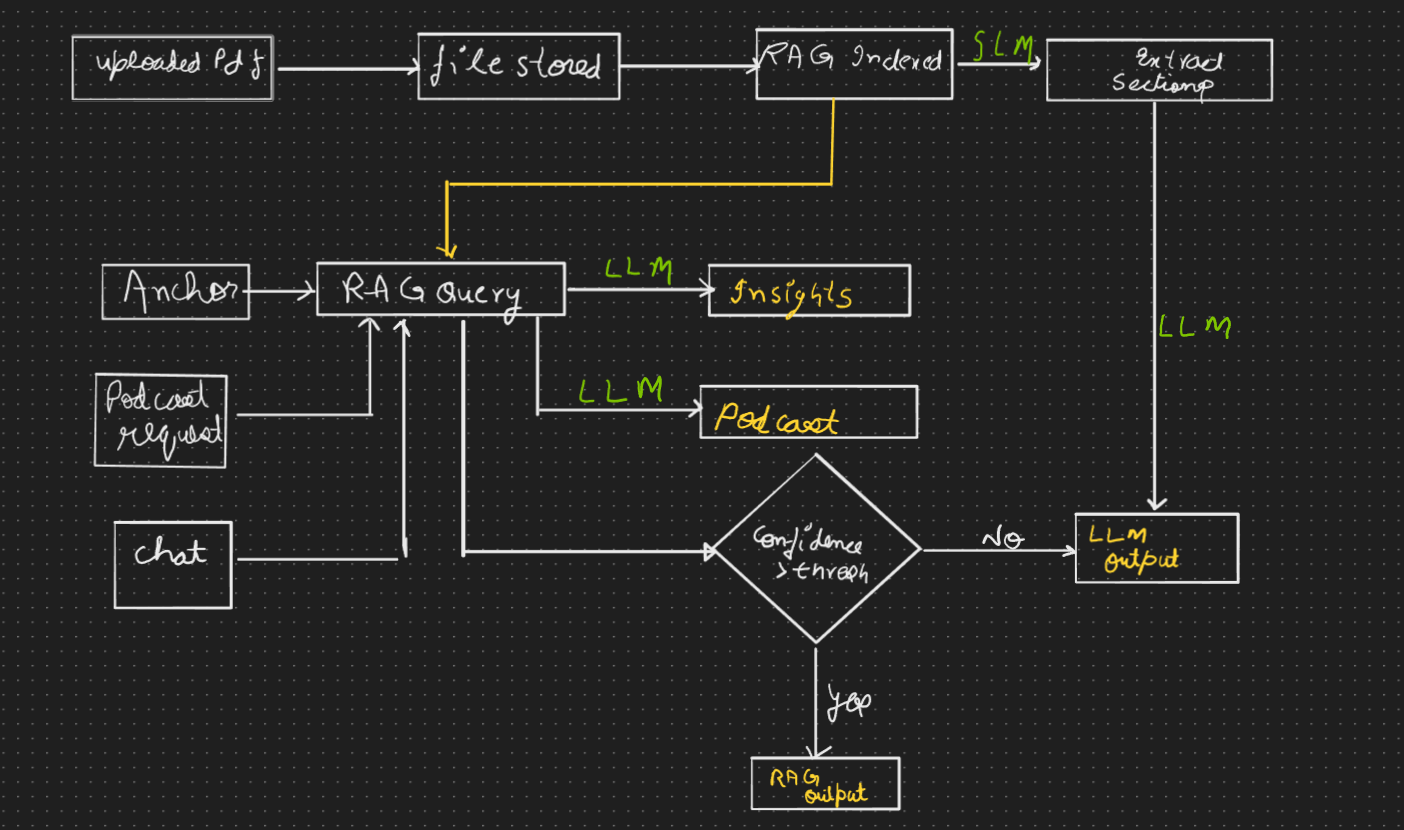

🏗️ Architecture

📁 Project Structure

connecting_the_dots/
├── Dockerfile
├── README.md
├── docker-compose.yml
├── nginx.conf
├── package.json
├── tailwind.config.js
├── postcss.config.js
├── entrypoint.sh
│
├── backend/
│   ├── app/
│   │   ├── routes/
│   │   │   ├── analyze_api.py
│   │   │   ├── outline_api.py
│   │   │   ├── podcast_api.py
│   │   │   ├── rag_api.py
│   │   │   ├── pdf_ops.py
│   │   │   ├── health.py
│   │   │   └── uploads.py
│   │   ├── services/
│   │   │   ├── genai_service.py
│   │   │   ├── pdf_service.py
│   │   │   └── rag_service.py
│   │   ├── __init__.py
│   │   └── config.py
│   ├── model/
│   │   ├── model.pt
│   │   └── outline_yolo.py
│   ├── rag_index/
│   ├── uploads/
│   ├── myvenv/
│   ├── .env
│   ├── app.py
│   ├── requirements.txt
│   └── run.py
│
├── public/
│   ├── favicon.ico
│   ├── index.html
│   ├── logo192.png
│   ├── logo512.png
│   ├── manifest.json
│   └── robots.txt
│
└── src/
  ├── components/
  │   ├── Toolbar.jsx
  │   ├── Tabs.jsx
  │   ├── ChatPanel.jsx
  │   └── viewer/
  │       ├── PDFPage.jsx
  │       ├── CenterViewer.jsx
  │       ├── selection.css
  │       └── scrollbar.css
  ├── services/
  │   └── api.js
  ├── App.jsx
  └── index.js

🚀 Quick Start

⚠️ CRITICAL: Port 4000 (backend API) must be exposed when running the Docker image. The frontend runs on 8080. Make sure both ports are mapped.

Option 1 — Docker

Build

docker build --platform linux/amd64 -t connectin-the-dots .

Run

docker run -e LLM_PROVIDER=gemini -e GEMINI_MODEL=gemini-2.5 -e TTS_PROVIDER=azure -e GOOGLE_API_KEY=<GOOGLE_API_KEY> -e AZURE_TTS_KEY=<AZURE_TTS_KEY> -e AZURE_TTS_ENDPOINT=<AZURE_TTS_ENDPOINT> -p 8080:8080 -p 4000:4000 connecting_the_dots

Manual Setup (Development)

If your backend needs cloud credentials or API keys, create environment variables or use .env in backend folder:

cd backend/
python -m venv .venv
source ./.venv/bin/activate

pip install -r requirements.txt

python run.py

# Open a new terminal in the root of project directory and run:
npm install
npm start

Health Check:

curl http://localhost:4000/api/health

Frontend:

# From repo root
npm install
npm start

🔑 Environment Variables:

LLM_PROVIDER=gemini
GEMINI_MODEL=gemini-2.5-flash
TTS_PROVIDER=azure
AZURE_TTS_KEY=...
AZURE_TTS_ENDPOINT=...
GOOGLE_API_KEY=...

🛟 Troubleshooting

Port Already in Use

Bind for 0.0.0.0:3000 failed

Stop anything on that port or change your mapping:

-p 8080:8080

"Heading detection failed (check backend)" in the viewer

Make sure the backend endpoints are reachable and healthy:

curl http://localhost:8080/api/health

PDFs not opening or showing "failed to fetch"

Clear your browser's local storage:

1. Open Chrome Developer Tools (F12)
2. Go to the Application tab
3. In the left sidebar, expand Local Storage
4. Select your domain and clear all entries
5. Refresh the page and try uploading the PDF again
