🔐 ESP32-ESP8266 Fault Injection Attack

This project demonstrates a hardware-based voltage glitching attack using an ESP32 to bypass authentication on an ESP8266 by momentarily disturbing its power supply at precise moments — simulating real-world fault injection exploits.

---

📷 Architecture

---

🧠 Project Overview

Component	Role
ESP8266	Victim — runs password-check logic
ESP32	Attacker — injects glitches via GPIO
Laptop	Monitors UART output and controls logic

---

🚀 Features

• ⏱️ Timing-based glitch trigger
• ⚡ Voltage fault injection (software controlled)
• 🔓 Bypass authentication logic
• 📟 Real-time serial monitoring
• 🧪 Modular for adding more side-channel or fault-based exploits

---

🛠️ Hardware Requirements

• 1 × ESP32 Dev Board
• 1 × ESP8266 NodeMCU (or equivalent)
• Common GND connection
• Jumper Wires

---

🔌 Wiring

ESP32 (Attacker)	ESP8266 (Victim)
GPIO (Glitch)	VCC / EN pin
GND	GND

Note: Use a common ground between both devices.

---

🧪 How It Works

1. ESP8266 waits for a password input.
2. ESP32 triggers a power glitch at a precise time.
3. This disrupts a conditional check inside the ESP8266 firmware.
4. If the glitch is timed right, authentication is bypassed.

---

🔧 Circuit

Basic Setup:

• ESP32 controls the glitch via a GPIO pin
• That pin is connected to the EN pin or VCC line of the ESP8266 (use a series resistor for safety)
• Common ground between ESP32 and ESP8266
• Serial connections for monitoring both boards independently

---

🔄 Working

1. Startup:

   • ESP8266 initializes and waits for a password over Serial
   • ESP32 is idle until triggered

2. Trigger:

   • ESP8266 reaches password check stage
   • ESP32 either listens for a specific signal or delays for a precise window

3. Fault Injection:

   • ESP32 sends a fast LOW pulse to the EN or VCC of ESP8266
   • This temporarily browns out the CPU without a full reboot

4. Result:

   • If the glitch is timed right, ESP8266 skips or corrupts the password check logic
   • Serial shows access granted without correct password

---

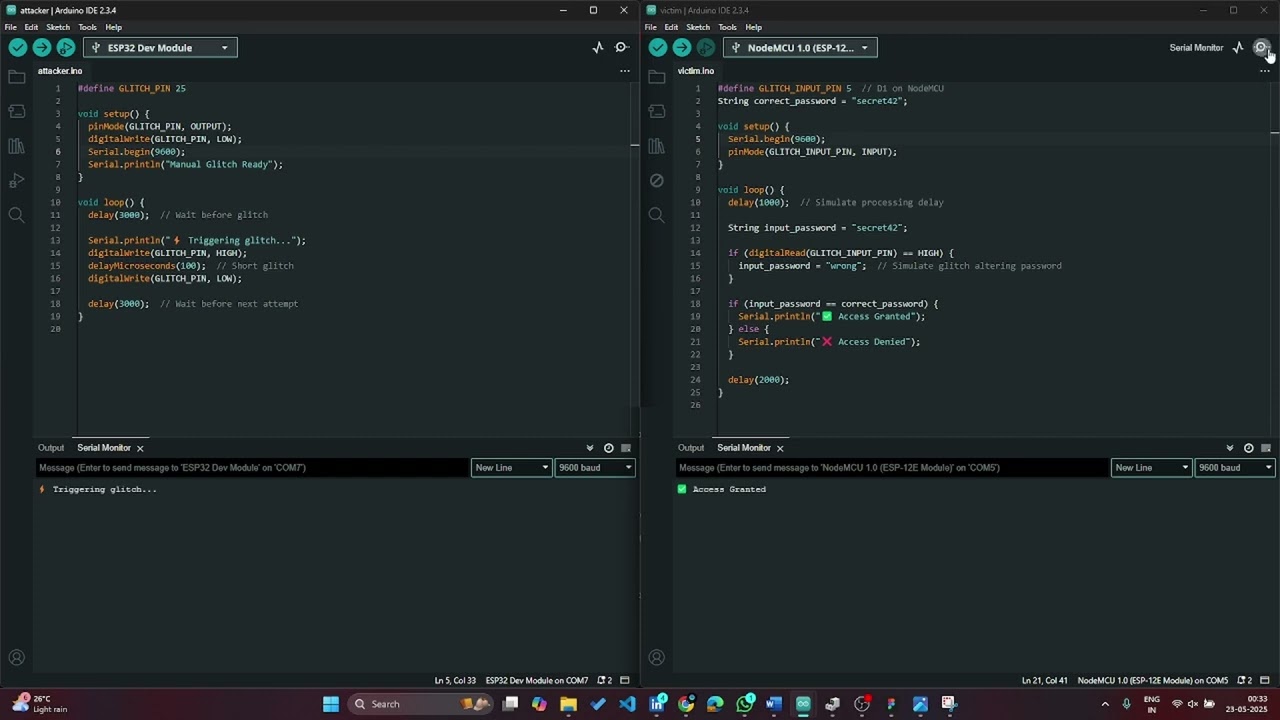

🧾 Serial Output

• Victim and attacker both output logs over USB serial.
• Use baud rate: 9600 or 115200 (depending on code)
• Use any serial monitor (Arduino IDE, PuTTY, minicom)

---

📜 Disclaimer

⚠️ This project is for educational purposes only. Unauthorized tampering with hardware may be illegal or violate terms of use.

---
