[Nvidia] ASIC Firmware update control by fastiuk · Pull Request #5 · fastiuk/sonic-buildimage

fastiuk · 2022-07-03T00:55:54Z

This PR depends on fastiuk/sonic-swss-common#3

Why I did it

Add an ability to control ASIC FW update
- Ability to enable/disable FW update
- Ability to choose FW source: image/user-defined

How to verify it

Build SONiC
or
When SONiC was already built:

rm -f target/python-wheels/bullseye/sonic_yang_models-1.0-py3-none-any.whl
BLDENV=bullseye make -f Makefile.work target/python-wheels/bullseye/sonic_yang_models-1.0-py3-none-any.whl
rm -f target/sonic-mellanox.bin
make target/sonic-mellanox.bin

Login into the switch.
Disable FW auto-update:

redis-cli -n 4 HSET "FIRMWARE|asic" "auto_update" "disable"
sudo reboot

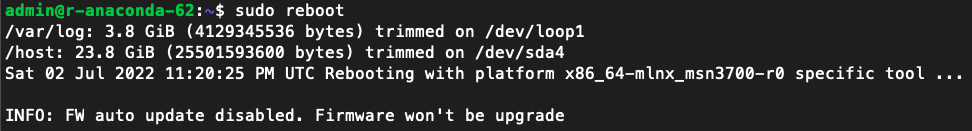

See the results:

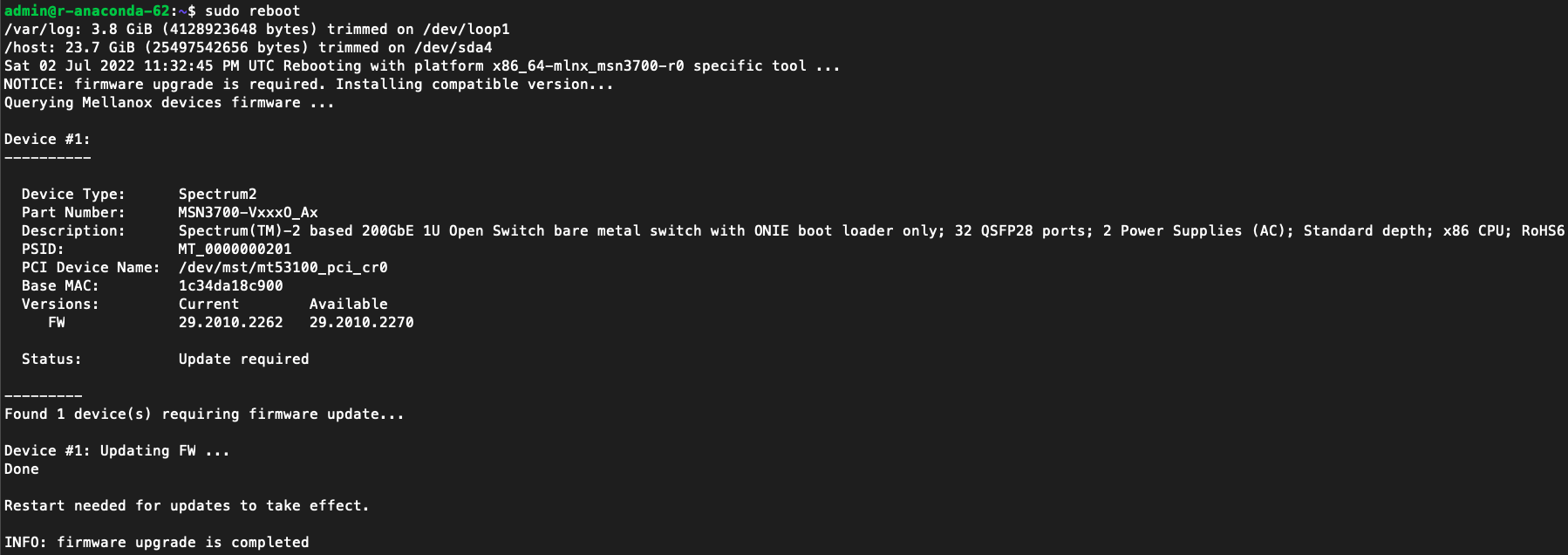

Enable auto-update, change source to user-defined and copy FW image in place:

redis-cli -n 4 HSET "FIRMWARE|asic" "auto_update" "enable"
redis-cli -n 4 HSET "FIRMWARE|asic" "default" "user"
sudo mkdir -p /host/mlnx/asic/
sudo cp /tmp/fw-SPC2-rel-29_2010_2270-EVB.mfa /host/mlnx/asic/fw.mfa
sudo reboot

Which release branch to backport (provide reason below if selected)

Description for the changelog

Add an ability to control ASIC FW update

Link to config_db schema for YANG module changes

sonic-firmware.yang

Submodules PR's :

Repo	PR title	State
sonic-swss-common	Firmware update control

A picture of a cute animal

fastiuk · 2022-07-05T17:02:50Z

@stepanblyschak please review

stepanblyschak

I wonder what is the real world use case for the end user. We know that we must have FW version and SDK version aligned. Without a mechanism to upgrade SDK and/or a mechanism to ensure user provided FW is guarateed to work with installed SDK version we create a possibility break the system easily.
If the intent is to allow user have a fix in new FW without waiting for the new SONiC image we can tell the user to replace the FW file under /etc and perform reboot to achive it.
I am also not sure why do we need to control "auto_update". We must upgrade FW prior to cold/fast/warm upgrade. If the user configuration disables it we should clearly let user know that these flows will be broken.

files/build_templates/init_cfg.json.j2

src/sonic-yang-models/yang-models/sonic-firmware.yang

src/sonic-yang-models/tests/files/sample_config_db.json

fastiuk · 2022-10-25T10:16:28Z

I wonder what is the real world use case for the end user.

It will allow users to control ASIC firmware and install their own images.

We know that we must have FW version and SDK version aligned. Without a mechanism to upgrade SDK and/or a mechanism to ensure user provided FW is guarateed to work with installed SDK version we create a possibility break the system easily.

I am not sure we must have versions completely aligned. I think on some systems we can have a little deviation between versions at least minor ones.
We don't have that mechanism to guarantee that new FW will work with a current SDK, so it will be user-responsibility to use proper FW.

If the intent is to allow user have a fix in new FW without waiting for the new SONiC image we can tell the user to replace the FW file under /etc and perform reboot to achive it.

We can but it is not a good user experience. In that case, the user will remove the old FW and won't be able to get it back (iow: it is not straightforward). That feature allows user to choose which FW to use.

I am also not sure why do we need to control "auto_update". We must upgrade FW prior to cold/fast/warm upgrade. If the user configuration disables it we should clearly let user know that these flows will be broken.

That requirement came from another Nvidia OS which allows doing so.
From user perspective it will allow user to install FW, but not install it right now. Only install when user enable auto-update.

* Add YANG model for new ConfigDB table * Covered with tests Signed-off-by: Yevhen Fastiuk <[email protected]>

* Add an ability to enable/disable FW auto-update. * Add an ability to set firmware source like: image, user. User defined fw image location should be the next: /host/mlnx/asic/fw.mfa Signed-off-by: Yevhen Fastiuk <[email protected]>

stepanblyschak · 2022-10-25T10:39:34Z

platform/mellanox/mlnx-fw-upgrade.j2


-if [ "${IMAGE_UPGRADE}" != "${YES_PARAM}" ]; then
-    UpgradeFW
+DEFAULT_SOURCE="$(sonic-cfggen -d -v FIRMWARE[\'asic\'][\'default\'])"


Also please make sure that we are able to perform reboot when database service is down or config db is not initialized

stepanblyschak · 2022-10-25T10:40:37Z

I wonder what is the real world use case for the end user.

It will allow users to control ASIC firmware and install their own images.

We know that we must have FW version and SDK version aligned. Without a mechanism to upgrade SDK and/or a mechanism to ensure user provided FW is guarateed to work with installed SDK version we create a possibility break the system easily.

I am not sure we must have versions completely aligned. I think on some systems we can have a little deviation between versions at least minor ones.

We don't have that mechanism to guarantee that new FW will work with a current SDK, so it will be user-responsibility to use proper FW.

If the intent is to allow user have a fix in new FW without waiting for the new SONiC image we can tell the user to replace the FW file under /etc and perform reboot to achive it.

We can but it is not a good user experience. In that case, the user will remove the old FW and won't be able to get it back (iow: it is not straightforward). That feature allows user to choose which FW to use.

I am also not sure why do we need to control "auto_update". We must upgrade FW prior to cold/fast/warm upgrade. If the user configuration disables it we should clearly let user know that these flows will be broken.

That requirement came from another Nvidia OS which allows doing so. From user perspective it will allow user to install FW, but not install it right now. Only install when user enable auto-update.

@fastiuk I suggest to contact @nazariig and understand how this effort relates to FW util and ask to review as he's the code owner for fw upgrade script.

I would also suggest to give a confirmation promt/warning to the user when he does warm/fast reboot when "auto_update" is disabled.
