+# Configuration Approval Process in Devtron
+
+## Introduction
+
+Since resources are created according to the configurations you enter, it's essential to protect such configurations against unauthorized changes. For critical environments like production, it becomes necessary to introduce an approval flow for any edits made to the configuration files.
+
+In Devtron, these configurations are present in the **App Configuration** tab of your application.
+
+Any changes made to the following configurations will require approval:
+
+- Deployment Template
+- ConfigMaps
+- Secrets
+
+This stands true for both: base configuration and respective environment-level configuration.
+
+![Figure 1a: Protecting Base Configuration](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/base-config.jpg)
+
+![Figure 1b: Protecting Environment-level Configuration](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/env-config.jpg)
+
+---
+
+## Changing the Configuration Values
+
+Let's say you wish to edit the deployment template of your environment (as an override)
+
+1. Go to the `App Configuration` tab.
+
+2. Click `Choose Protect Configuration`.
+
+3. Enable the protection for the configuration of your choice (base/environment level). A protection badge would appear next to the chosen configuration.
+

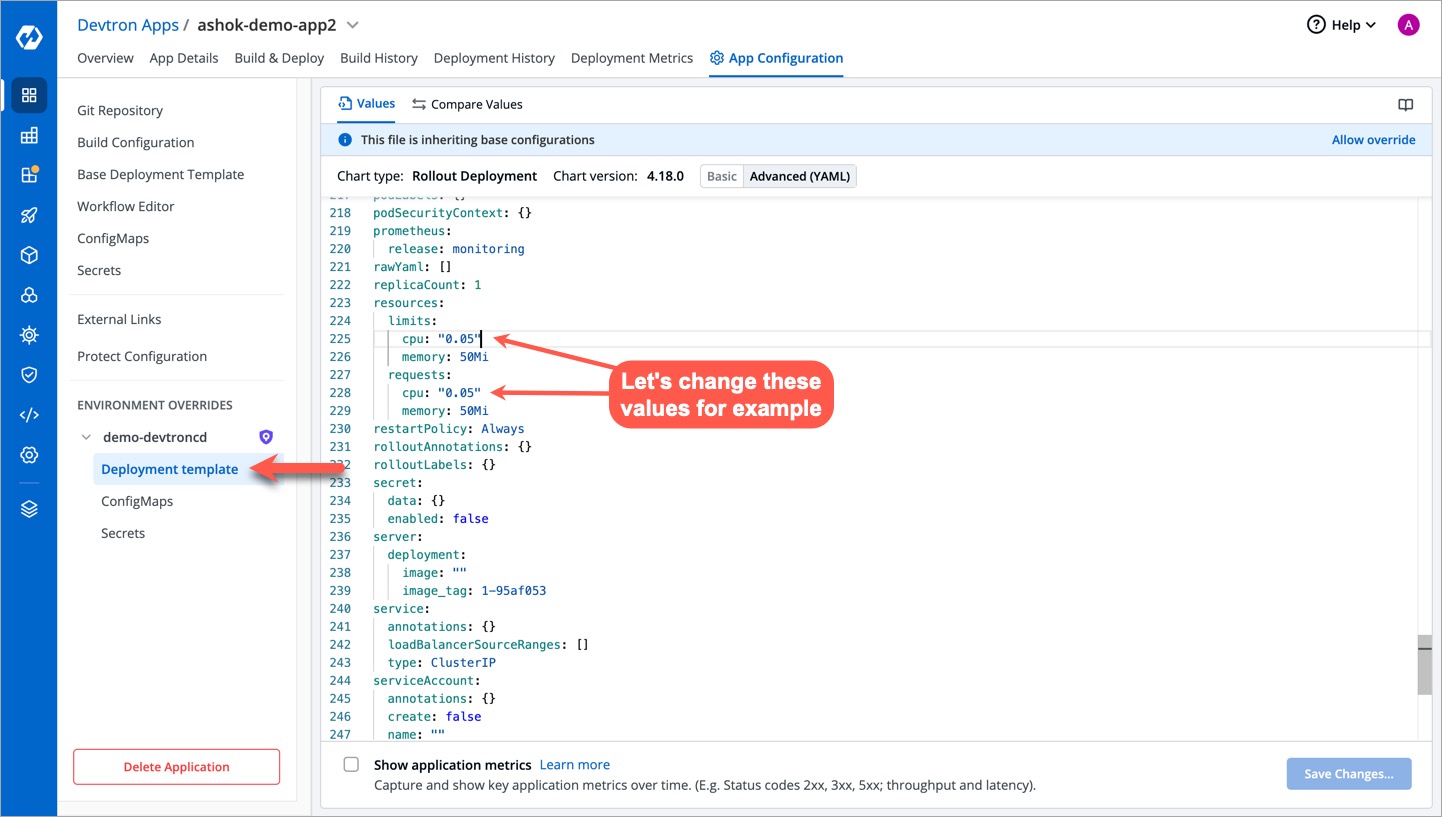

+4. In Environment Overrides → (choose your environment) → Deployment Template
+
+    ![Figure 2: Selecting Values to Change](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/edit-deployment-template.jpg)
+

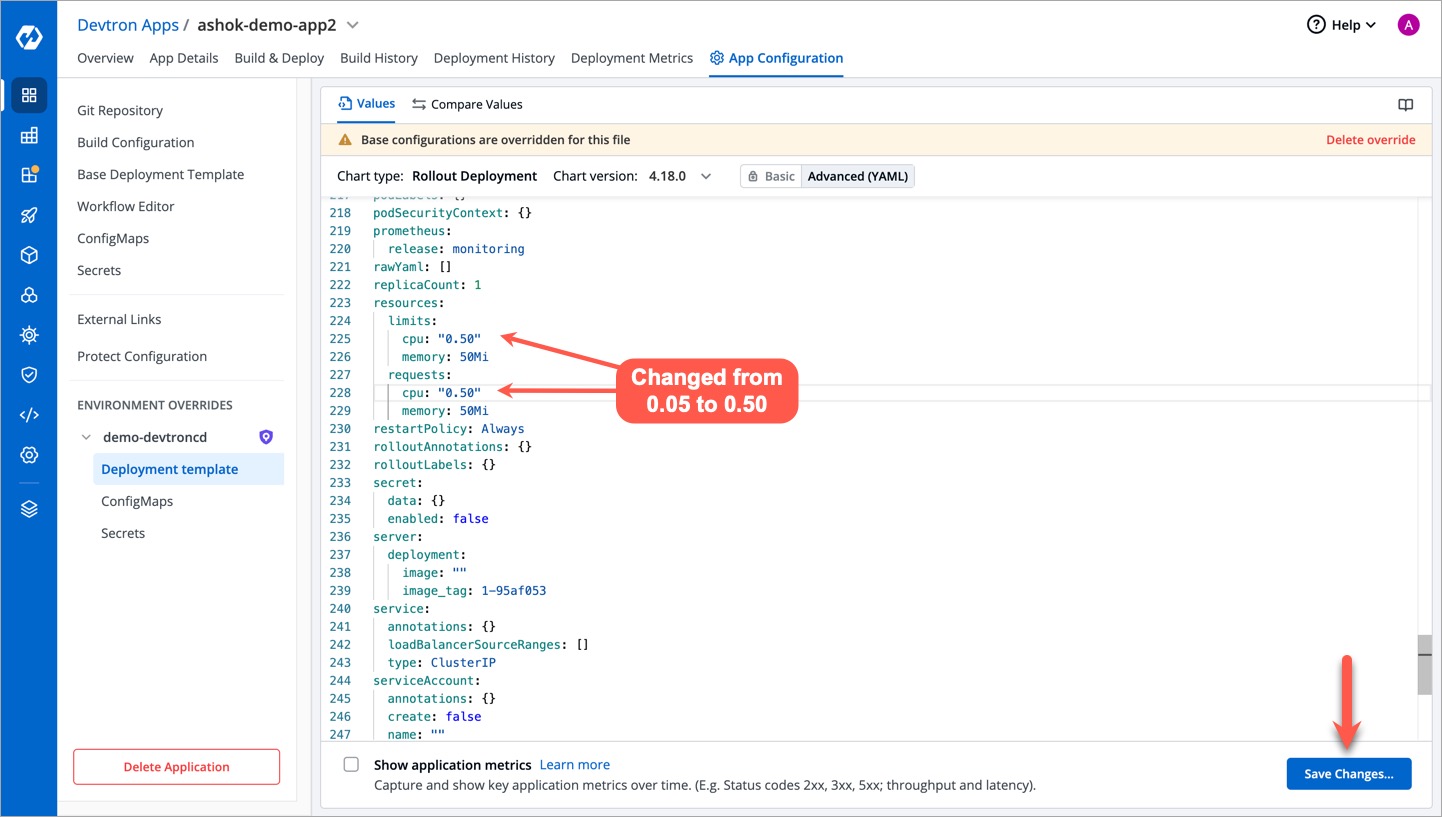

+5. You can change the value of a key to a desired value as shown below. Once done, click the **Save Changes…** button **.**
+
+    ![Figure 3: Changed Values](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/changed-values.jpg)
+

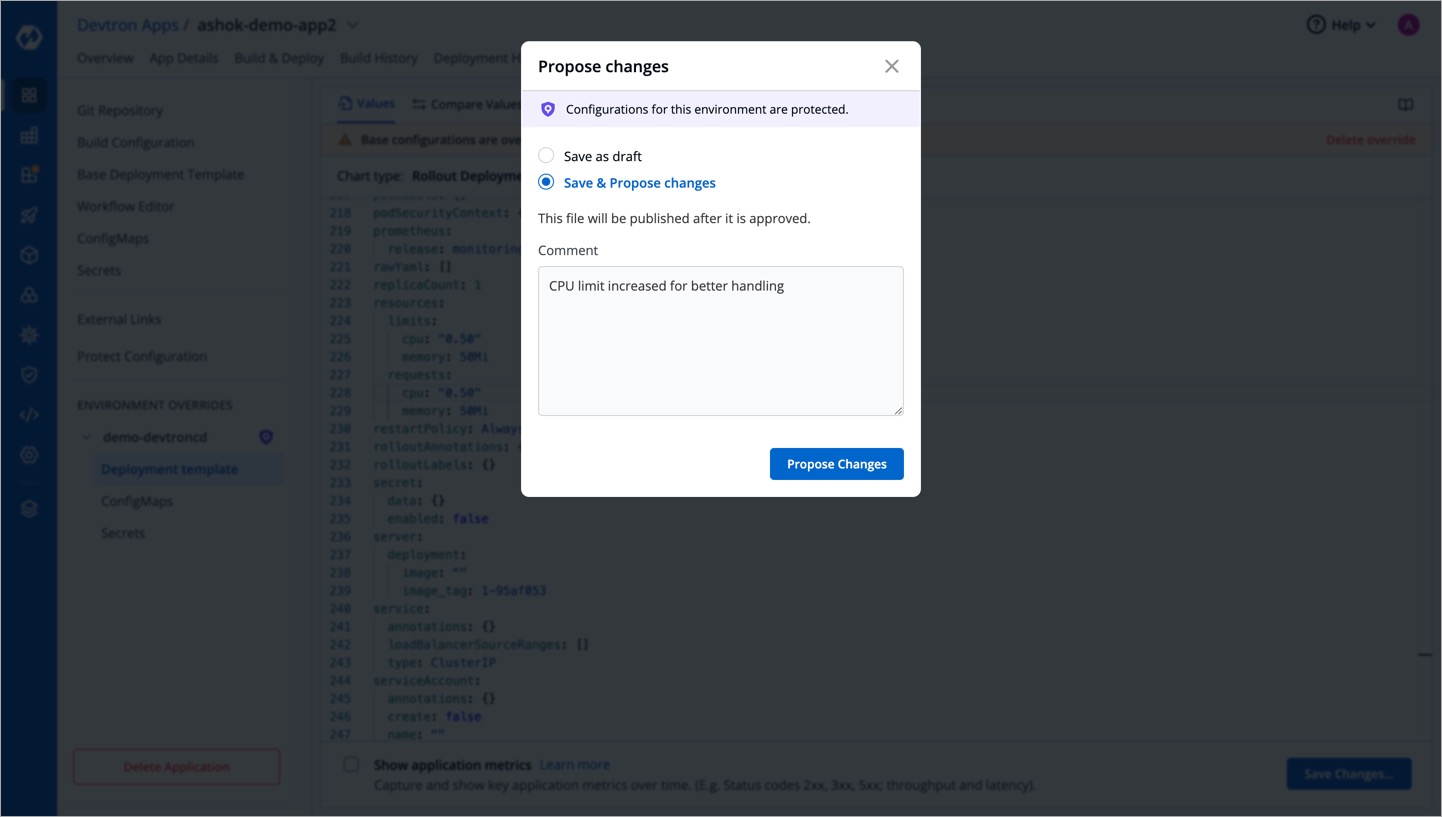

+6. Next, you can either do one of the following:
+
+    * **Save as draft** : Selecting this option will save your file as a draft. Other users can view and edit the saved draft and propose it further for approval.
+    * **Save & Propose Changes** : Selecting this option will propose your changes for approval from an authorized user.
+
+    Since we are proposing the changes immediately, click **Propose Changes**.
+
+    ![Figure 4: Proposing Changes](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/propose-changes.jpg)
+

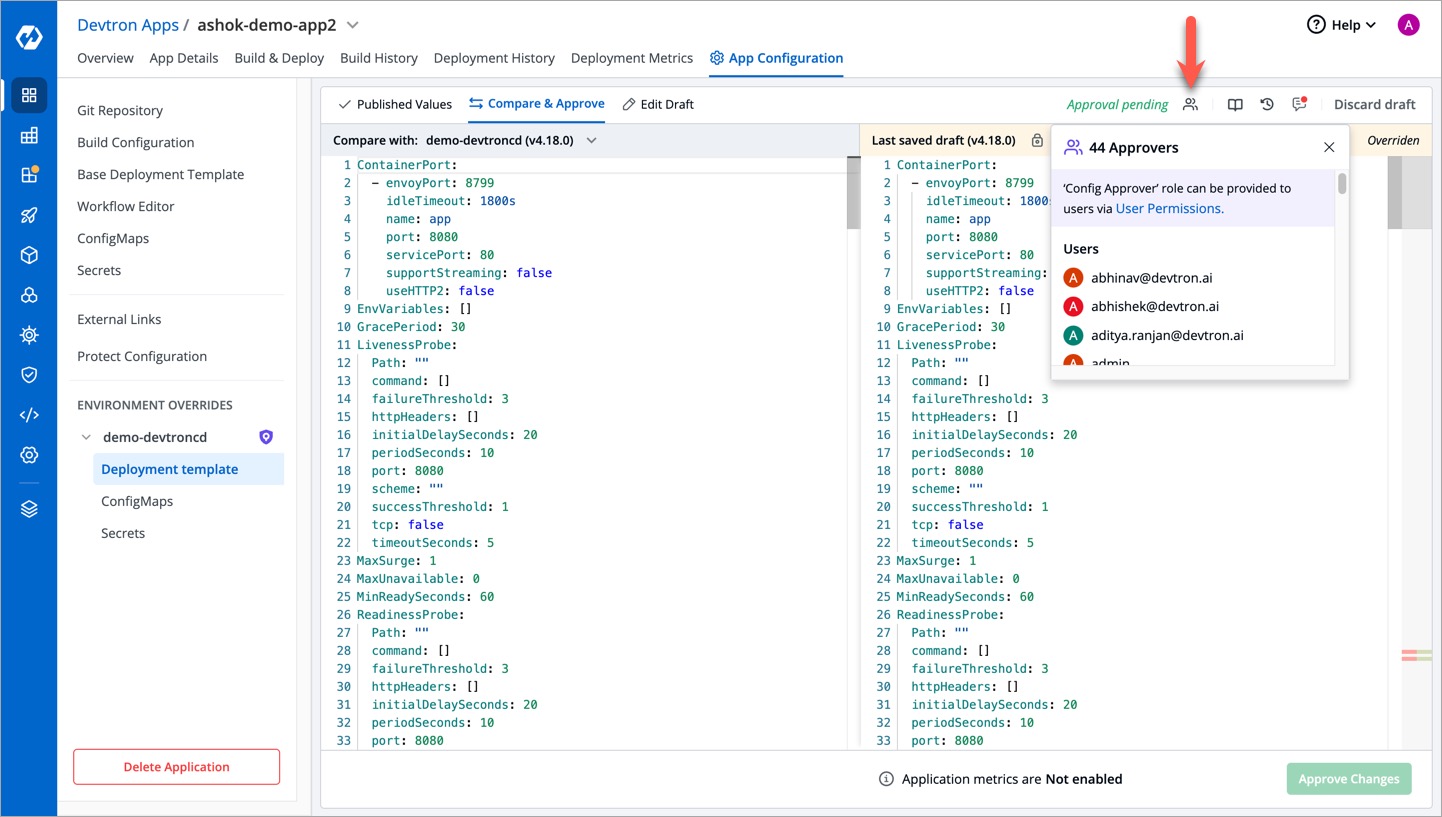

+7. You can also view the approver(s) if you wish.
+
+    ![Figure 5: Viewing the Approver(s)](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/approver-list.jpg)
+
+{% hint style="info" %}
+If you are already a super-admin who performed the edits, still you won't be able to approve your own changes. A different user has to approve your changes.
+{% endhint %}
+
+In the top-right corner, you have the option to discard the draft if you don't wish to proceed with the edits you made. Alternatively, unprotecting the configuration in the **App Configuration** page will also lead to the discarding of your proposed changes.
+
+![Figure 6a: Disabling Protection](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/toggle-protection.jpg)
+
+![Figure 6b: Confirming Action](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/unprotect.jpg)
+
+---
+
+## Approving the Configuration
+
+Only a super-admin user or someone with `Configuration approver` access can approve the changes made to the configuration files. To check this, follow the below steps.
+
+1. Go to **Global Configurations** from the left menu.
+
+2. Click the **Authorization** dropdown.
+
+3. Select **User Permissions**.
+

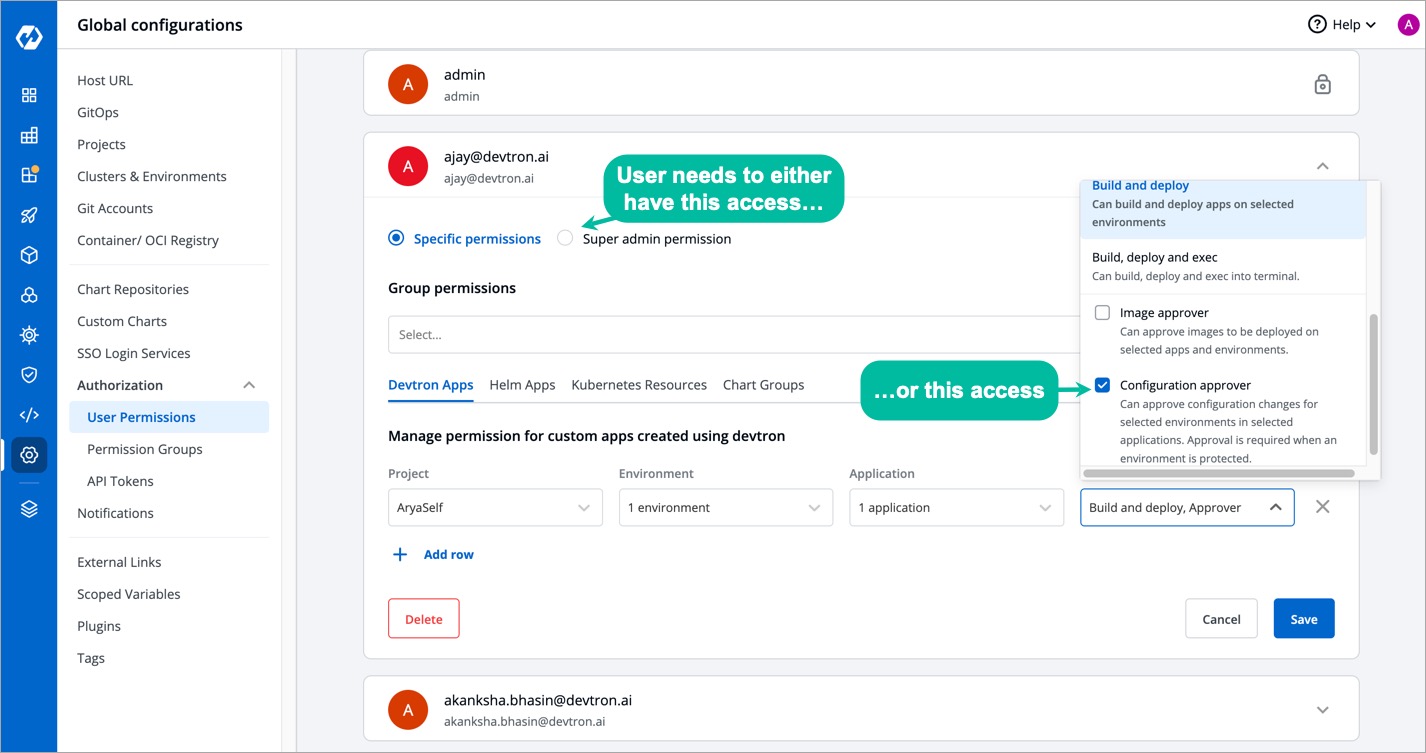

+4. Check the permissions granted to the user.
+
+    ![Figure 7a: Checking Permissions](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/config-approver.jpg)
+
+    If the user has the requisite permissions, he/she can approve the configuration changes as shown below.
+
+    ![Figure 7b: Authorized User Approving the Changes](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/approval-screen.jpg)
+
+---
+
+## Deploying with New Configuration Values
+
+Once the approver validates and approves your configuration changes, you can proceed to deploy your application with the updated configuration.
+

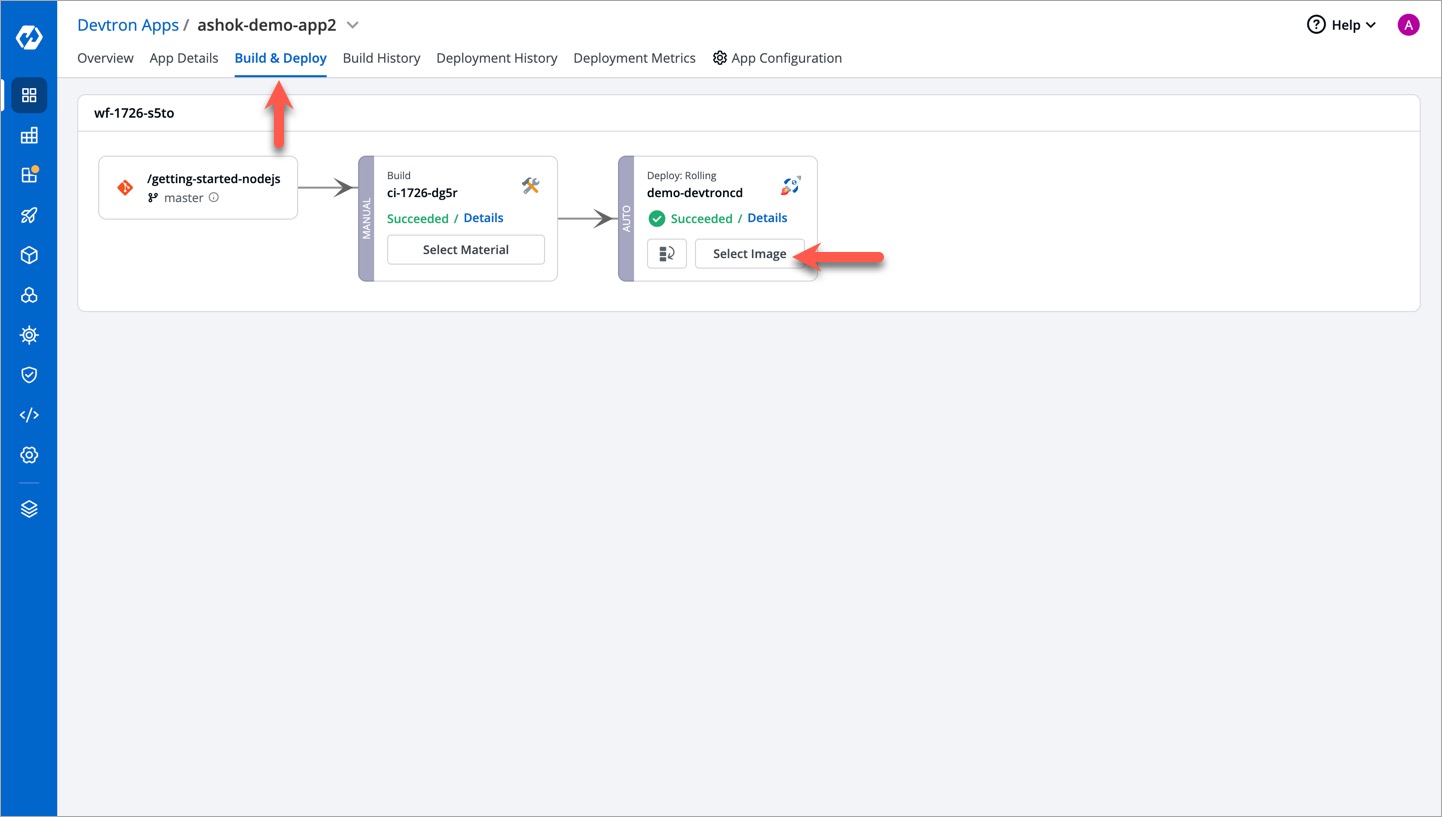

+1. Go to the **Build & Deploy** tab of your application.
+
+2. Click **Select Image** in the deployment flow.
+
+    ![Figure 8: Build & Deploy Page](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/deploy-pipeline.jpg)
+

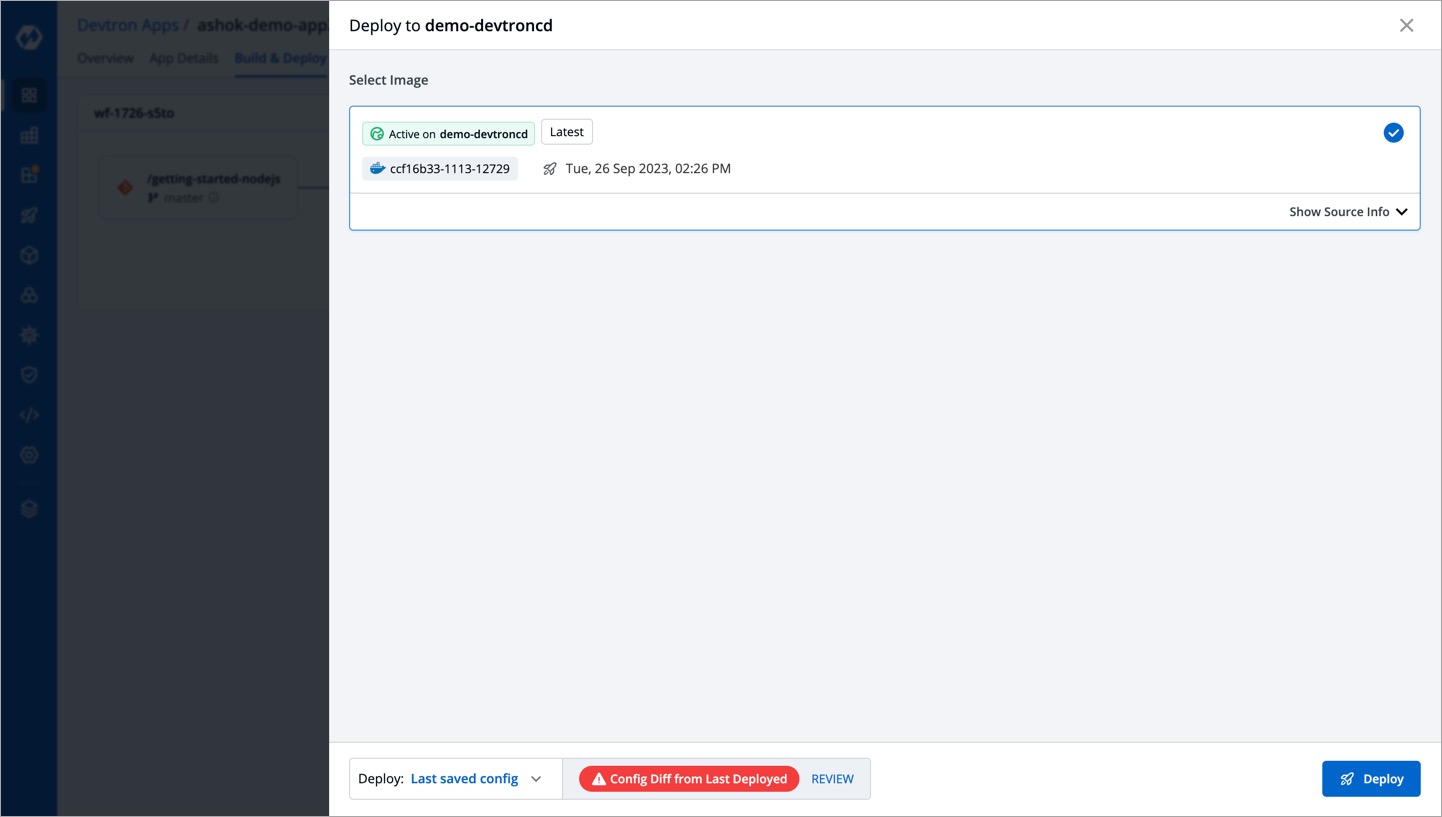

+3. You can view an indicator at the bottom `Config Diff from Last Deployed`. Click **Review** to view the changes.
+
+    ![Figure 9: Checking Config Diff](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/review-config-diff.jpg)
+
+{% hint style="info" %}
+If the new configuration is not yet approved, the changes made to the config would not be visible during deployment, it would show `No Config Diff from Last Deployed` at the bottom.
+{% endhint %}
+

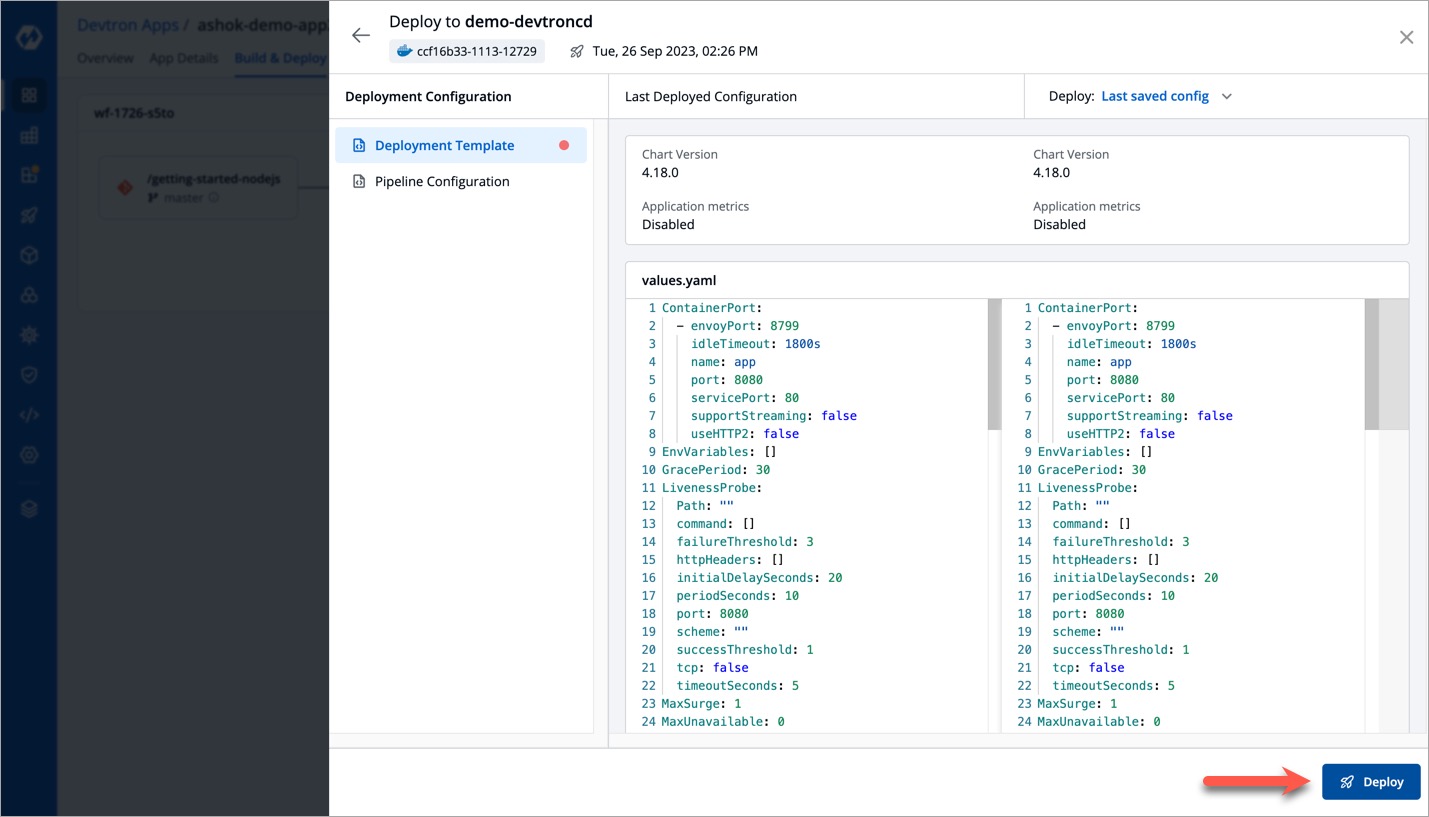

+4. Once you have verified the changes, you can click **Deploy**.
+
+    ![Figure 10: Deploying App using New Config](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/creating-application/config-approval/deploy.jpg)
+
+{% hint style="info" %}
+If you don't wish to deploy with the new changes, you can choose `Last deployed config` from the available drop-down.
+{% endhint %}
