cannot replicate dose response curve

[nhac1]

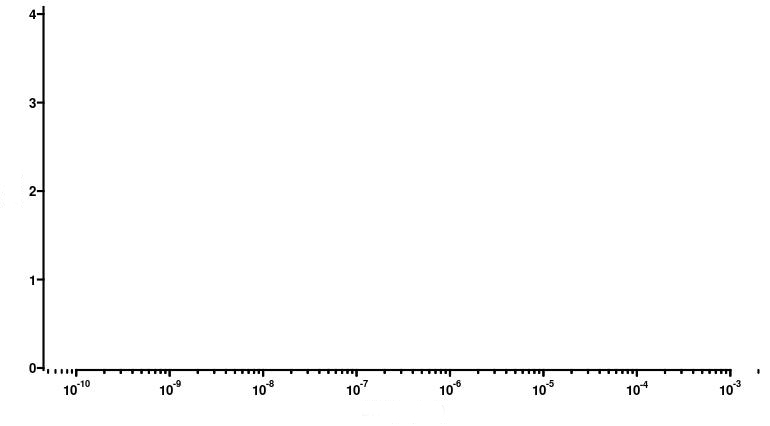

Charlotte thanks for the library. I've tried to replicate the above but failed. I've tried with my actual x axis limits and generic code using the max an min x values. The attached image is almost all right for the x axis apart from the top and bottom bits which are funny but its stripped out my points and my regression and points. I do need the minor tick marks since I'm trying to work out the MDC and RDL from the 95CI.

My code is as as follows

``p <- ggplot(df, aes(x = x, y = y))
p <- p +geom_point()
p <- p + geom_smooth(method="nls",formula = fitmodel, se = FALSE,
method.args = list(start = list(a = a_start2, b =b_start2, c = c_start2, d = d_start2)))
p<- p + theme_prism(base_size = 14)
p<- p + ylab("od") +xlab("concn")
p<- p + annotation_logticks(side="b", outside = TRUE, size=1, mid = unit(0.1, "cm"), long = unit(0.2, "cm")) +
coord_cartesian(clip = "off")

p<- p + scale_x_continuous(
limits = c(min.size_x, max.size_x),
breaks = min.size_x:max.size_x,
guide = "prism_offset_minor",
minor_breaks = log10(rep(1:9, 7)*(10^rep(-4:4, each = 9))),
labels = function(lab) {
do.call(
expression,
lapply(paste(lab), function(x) bquote(bold("10"^.(x))))
)
}
)
Please could you set me straight. Ta Neil

[csdaw]

Hi Neil,

Thanks for your question. It's a little hard without your data or a reproducible example but I'll try to help.

A few points:

• You shouldn't need to use annotation_logticks() if you are using guide = "prism_offset_minor" and are setting up the minor ticks with a function.
• The issue is likely with the axis scaling step and whether or not your data has been log10 transformed.

Here is some code which you should hopefully be able to apply to your own data.

library(ggplot2)
library(ggprism)

# non-log transformed x data means you need to use scale_x_log10()
# and pay attention to the limits and breaks
df <- data.frame(
  x = 10^(seq(-10, -3, 1)),
  y = 1:8
)

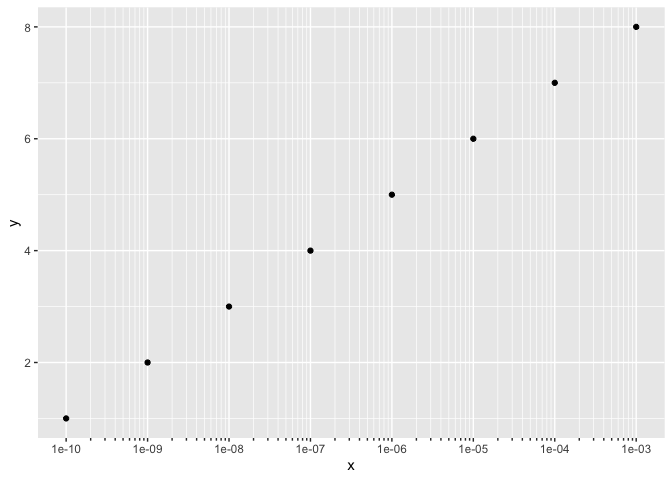

ggplot(df, aes(x = x, y = y)) +
  geom_point() +
  scale_x_log10(
    limits = c(1e-10, 1e-3),
    breaks = 10^(seq(-10, -3, 1)),
    minor_breaks = rep(1:9, 7)*(10^rep(-10:-4, each = 9)),
    guide = "prism_offset_minor"
  )

# log transformed x data means you need to use scale_x_continuous()
# limits and breaks are a little simpler here
df2 <- data.frame(
  x = log10(10^(seq(-10, -3, 1))),
  y = 1:8
)

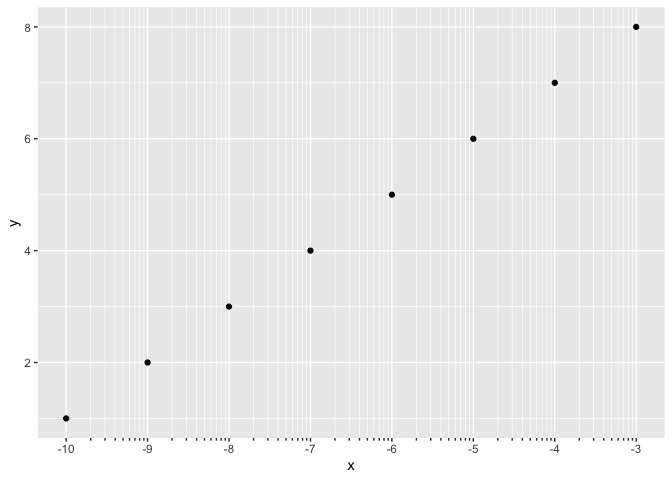

ggplot(df2, aes(x = x, y = y)) +
  geom_point() +
  scale_x_continuous(
    limits = c(-10, -3),
    breaks = seq(-10, -3, 1),
    minor_breaks = log10(rep(1:9, 7)*(10^rep(-10:-4, each = 9))),
    guide = "prism_offset_minor"
  )

# I hope this code will help

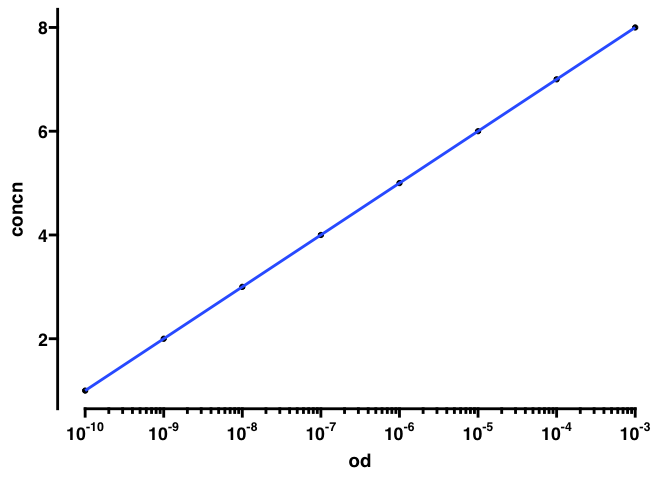

ggplot(df2, aes(x = x, y = y)) +
  geom_point() +
  geom_smooth() +
  theme_prism(base_size = 14) +
  labs(x = "od", y = "concn") +
  scale_x_continuous(
    limits = c(-10, -3),
    breaks = seq(-10, -3, 1),
    minor_breaks = log10(rep(1:9, 7)*(10^rep(-10:-4, each = 9))),
    guide = "prism_offset_minor",
    labels = function(lab) {
      do.call(
        expression,
        lapply(paste(lab), function(x) bquote(bold("10"^.(x))))
      )
    }
  )
#> `geom_smooth()` using method = 'loess' and formula 'y ~ x'

^{Created on 2022-01-17 by the reprex package (v2.0.1)}

[nhac1]

Charlotte thanks for your help. I discovered part of the problem was geom_smooth(nls or nlslm) does not work with log scales. I think that was the problem. With my 95%CI's I used geom_line and ribbon. However I don't understand this line of code or only partly minor_breaks = log10(rep(1:9, 7)*(10^rep(-10:-4, each = 9))) I've also been trying to make my code fairly generic so it determines the x axis upper and lower limits and the major minor breaks are done for you. This attached file is my best attempt so far using ggprism. The data could be better and is slightly with todays assay! Thanks again for your help Neil

…
