This is a libray for KiCad 7.0 and higher. It contains symbols of components MaxLinear. This repository is not endorsed by any company and has no connection with any company.
This library follows the KiCad Library Convention.
| Company | Component | Description | Datasheet | Packages | 1st version |
|---|---|---|---|---|---|
| MaxLinear | XR17V352 | HIGH PERFORMANCE DUAL PCI EXPRESS UART | datasheet | FPBGA-113 | 1.0.0 |

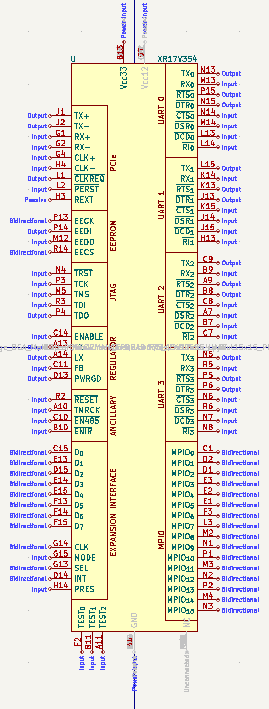

| MaxLinear | XR17V354 | HIGH PERFORMANCE QUAD PCI EXPRESS UART | datasheet | FPBGA-176 | 1.0.0 |
| MaxLinear | XR17V358 | HIGH PERFORMANCE OCTAL PCI EXPRESS UART | datasheet | FPBGA-176 | 1.0.0 |
| MaxLinear | XR20M1170IL16 | I2C/SPI UART with 64-Byte FIFO | datasheet | QFN-16 | 1.0.0 |
| MaxLinear | XR20M1170IG16 | I2C/SPI UART with 64-Byte FIFO | datasheet | TSSOP-16 | 1.0.0 |
| MaxLinear | XR20M1170IL24 | I2C/SPI UART with 64-Byte FIFO | datasheet | QFN-24 | 1.0.0 |
| MaxLinear | XR20M1170IG24 | I2C/SPI UART with 64-Byte FIFO | datasheet | TSSOP-24 | 1.0.0 |
| MaxLinear | XR20M1280IL24 | I2C/SPI UART with 128-byte FIFO and Integrated Level Shifters | datasheet | QFN-24 | 1.0.0 |
| MaxLinear | XR20M1280IL32 | I2C/SPI UART with 128-byte FIFO and Integrated Level Shifters | datasheet | QFN-32 | 1.0.0 |
| Name | Package | Pins | Size | Layout | 1st version |
|---|---|---|---|---|---|
| MaxLinear_FPBGA-113_9.0x9.0mm_Layout11x11_P0.8mm | FPBGA | 113 | 9x9mm | 11x11 | 1.0.0 |
| MaxLinear_FPBGA-176_13x13mm_Layout15x15_P0.8mm | FPBGA | 176 | 13x13mm | 15x15 | 1.0.0 |
Contributions are welcomed ! Please feel free to open an Issue or a Pull Request.
Please follow the KiCad Library Convention in your Pull Requests.
Interface_UART_MaxLinear (c) by Alexandre Barrat
This library is licensed under the Creative Commons Attribution-ShareAlike 4.0 International License, with the following exception:
To the extent that the creation of electronic designs that use 'Licensed Material' can be considered to be 'Adapted Material', then the copyright holder waives article 3 of the license with respect to these designs and any generated files which use data provided as part of the 'Licensed Material'.
- Documentations come from MaxLinear website https://www.maxlinear.com/products/interface/uarts.
