[New device]: BSEED Wall-mounted electrical socket with power monitoring _TZ3210_2uollq9d

[DelBierzo]

Link

https://es.aliexpress.com/item/1005005714480181.html

Database entry

{"id":43,"type":"Router","ieeeAddr":"0xa4c138c1dcd466b7","nwkAddr":63529,"manufId":4417,"manufName":"TZ3210_2uollq9d","powerSource":"Mains (single phase)","modelId":"TS011F","epList":[1,242],"endpoints":{"1":{"profId":260,"epId":1,"devId":266,"inClusterList":[3,4,5,6,1794,2820,57344,57345,0],"outClusterList":[25,10],"clusters":{"genBasic":{"attributes":{"65503":"&o0\u0012","65506":56,"65508":0,"65534":0,"stackVersion":0,"dateCode":"","manufacturerName":"_TZ3210_2uollq9d","zclVersion":3,"appVersion":82,"modelId":"TS011F","powerSource":1,"hwVersion":1}},"haElectricalMeasurement":{"attributes":{"acCurrentDivisor":1000,"acCurrentMultiplier":1,"rmsVoltage":242,"rmsCurrent":0,"activePower":0}},"seMetering":{"attributes":{"divisor":100,"multiplier":1,"currentSummDelivered":0}},"genOnOff":{"attributes":{"32768":1,"onOff":1,"onTime":0,"offWaitTime":0,"tuyaBacklightMode":1,"moesStartUpOnOff":1,"tuyaBacklightSwitch":1}},"manuSpecificTuya3":{"attributes":{"53248":1,"53249":0,"53250":2840978,"53251":122,"53252":10714,"53253":1267,"powerOnBehavior":1,"switchType":0}}},"binds":[{"cluster":6,"type":"endpoint","deviceIeeeAddress":"0x00124b002a7b05de","endpointID":1},{"cluster":2820,"type":"endpoint","deviceIeeeAddress":"0x00124b002a7b05de","endpointID":1},{"cluster":1794,"type":"endpoint","deviceIeeeAddress":"0x00124b002a7b05de","endpointID":1}],"configuredReportings":[{"cluster":2820,"attrId":1285,"minRepIntval":5,"maxRepIntval":3600,"repChange":5},{"cluster":2820,"attrId":1288,"minRepIntval":5,"maxRepIntval":3600,"repChange":50},{"cluster":2820,"attrId":1291,"minRepIntval":5,"maxRepIntval":3600,"repChange":10},{"cluster":1794,"attrId":0,"minRepIntval":5,"maxRepIntval":3600,"repChange":257}],"meta":{}},"242":{"profId":41440,"epId":242,"devId":97,"inClusterList":[],"outClusterList":[33],"clusters":{},"binds":[],"configuredReportings":[],"meta":{}}},"appVersion":82,"stackVersion":0,"hwVersion":1,"dateCode":"","zclVersion":3,"interviewCompleted":true,"interviewState":"SUCCESSFUL","meta":{"configured":332242049},"lastSeen":1759323758737}

Zigbee2MQTT version

2.6.1

Comments

Model: PC86ZEUSKM1W

Description: Wall-mounted electrical EU socket with Power Monitoring 16A

Vendor: BSEED

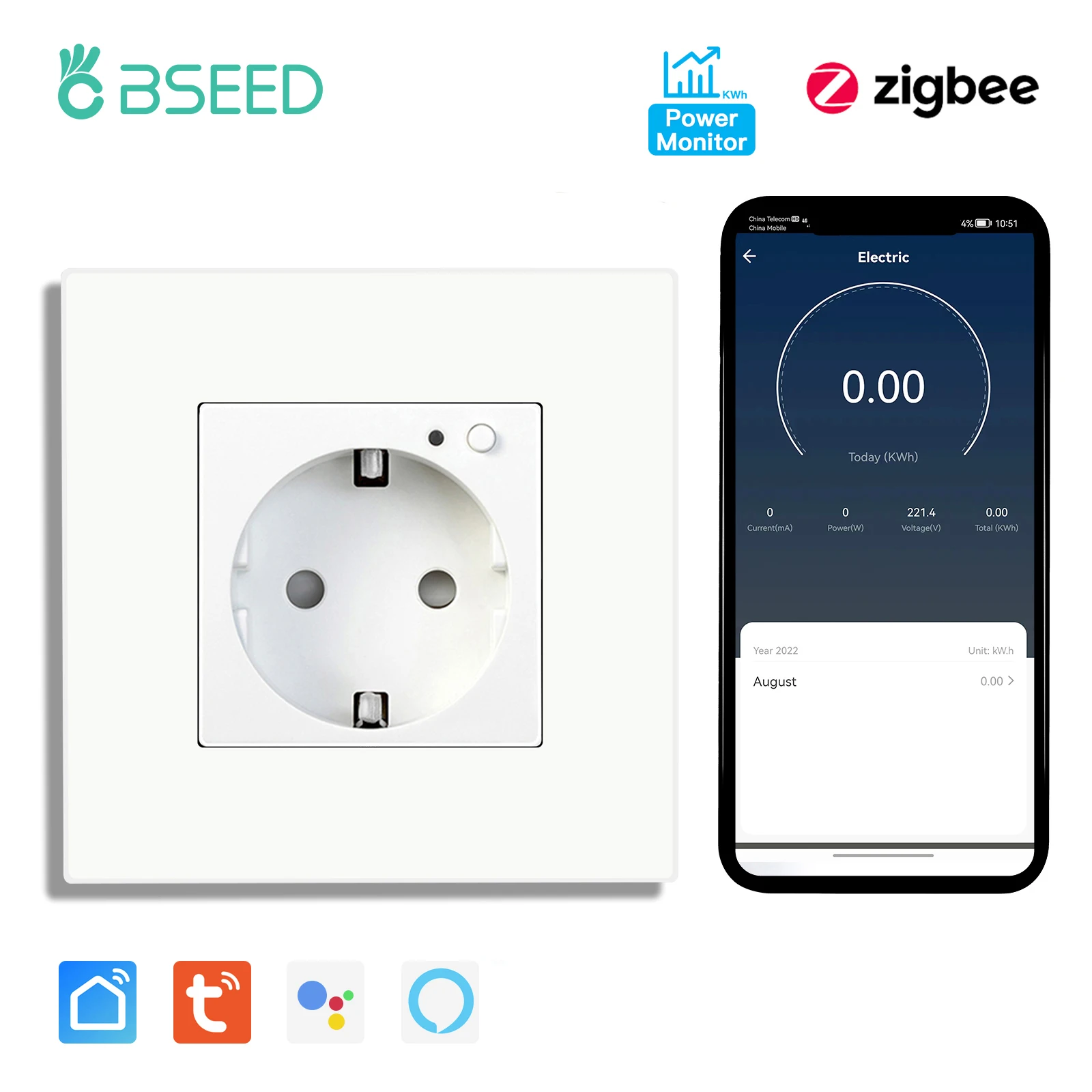

Picture (link)

Zigbee2MQTT, detects it as: "TS011F", "_TZ3210_2uollq9d", "TS011F_plug_1"

External definition

import * as m from 'zigbee-herdsman-converters/lib/modernExtend';

export default {
    zigbeeModel: ['TS011F'],
    model: 'TS011F',
    vendor: '_TZ3210_2uollq9d',
    description: 'Automatically generated definition',
    extend: [m.onOff({"powerOnBehavior":false}), m.electricityMeter()],
    meta: {},
};

What does/doesn't work with the external definition?

Work:

• Switch
• Countdown
• Power outage memory
• Indicator mode
• Voltage
• Child lock

Doesn't work:

• Power
• Current
• Energy

[DelBierzo]

with this external_converters, it doesn't work either:

{
"child_lock": "UNLOCK",
"countdown": 0,
"current": 0,
"energy": 0,
"indicator_mode": "off/on",
"linkquality": 136,
"power": 0,
"power_outage_memory": "on",
"state": "ON",
"voltage": 234
}

import * as tuya from 'zigbee-herdsman-converters/lib/tuya';
import * as fz from 'zigbee-herdsman-converters/converters/fromZigbee';
import * as reporting from 'zigbee-herdsman-converters/lib/reporting';
import * as utils from 'zigbee-herdsman-converters/lib/utils';
import * as globalStore from 'zigbee-herdsman-converters/lib/store';

const fzLocal = {
  TS011F_electrical_measurement: {
        ...fz.electrical_measurement,
        convert: (model, msg, publish, options, meta) => {
            const result = (fz.electrical_measurement.convert(model, msg, publish, options, meta) ) ?? {};
            const lookup = {
                power: "activePower",
                current: "rmsCurrent",
                voltage: "rmsVoltage",
            };

            // Wait 5 seconds before reporting a 0 value as this could be an invalid measurement.
            // https://github.com/Koenkk/zigbee2mqtt/issues/16709#issuecomment-1509599046
            if (result) {
                for (const key of ["power", "current", "voltage"]) {
                    if (key in result) {
                        const value = result[key];
                        clearTimeout(globalStore.getValue(msg.endpoint, key));
                        if (value === 0) {
                            const configuredReporting = msg.endpoint.configuredReportings.find(
                                (c) => c.cluster.name === "haElectricalMeasurement" && c.attribute.name === lookup[key],
                            );
                            const time = (configuredReporting ? configuredReporting.minimumReportInterval : 5) * 2 + 1;
                            globalStore.putValue(
                                msg.endpoint,
                                key,
                                setTimeout(() => {
                                    const payload = {[key]: value};
                                    // Device takes a lot of time to report power 0 in some cases. When current == 0 we can assume power == 0
                                    // https://github.com/Koenkk/zigbee2mqtt/discussions/19680#discussioncomment-7868445
                                    if (key === "current") {
                                        payload.power = 0;
                                    }
                                    publish(payload);
                                }, time * 1000),
                            );
                            delete result[key];
                        }
                    }
                }
            }

            // Device takes a lot of time to report power 0 in some cases. When the state is OFF we can assume power == 0
            // https://github.com/Koenkk/zigbee2mqtt/discussions/19680#discussioncomment-7868445
            if (meta.state.state === "OFF") {
                result.power = 0;
            }

            return result;
        },
    }
}

export default {
		// Note: below you will find the TS011F_plug_2 and TS011F_plug_3. These are identified via a fingerprint and
		// thus preferred above the TS011F_plug_1 if the fingerprint matches
		zigbeeModel: ["TS011F"],
		model: "TS011F_plug_1",
		description: "Smart plug (with power monitoring)",
		vendor: "Tuya",
        whiteLabel: [
            {vendor: "LELLKI", model: "TS011F_plug"},
            {vendor: "BlitzWolf", model: "BW-SHP15"},
            {vendor: "BlitzWolf", model: "BW-SHP13"},
            {vendor: "MatSee Plus", model: "PJ-ZSW01"},
            {vendor: "MODEMIX", model: "MOD037"},
            {vendor: "MODEMIX", model: "MOD048"},
            {vendor: "Coswall", model: "CS-AJ-DE2U-ZG-11"},
            {vendor: "Aubess", model: "TS011F_plug_1"},
            tuya.whitelabel("BSEED", "TS011F_plug_1_2", "Wall-mounted electrical EU/FR/UK socket with power monitoring", [
                "_TZ3000_4ux0ondb",
                "_TZ3000_b28wrpvx",
                "_TZ3000_2uollq9d",
				"_TZ3210_2uollq9d",
            ]),
            tuya.whitelabel("BSEED", "_TZ3210_5ct6e7ye", "Wall-mounted electrical EU/FR/UK socket with power monitoring and USB", [
                "_TZ3210_5ct6e7ye",
            ]),
            tuya.whitelabel("Nous", "A1Z", "Smart plug (with power monitoring)", ["_TZ3000_2putqrmw", "_TZ3000_ksw8qtmt"]),
            tuya.whitelabel("Moes", "Moes_plug", "Smart plug (with power monitoring)", ["_TZ3000_yujkchbz"]),
            tuya.whitelabel("Moes", "ZK-EU", "Smart wallsocket (with power monitoring)", ["_TZ3000_ss98ec5d"]),
            tuya.whitelabel("Elivco", "LSPA9", "Smart plug (with power monitoring)", ["_TZ3000_okaz9tjs"]),
            tuya.whitelabel("PSMART", "T440", "Smart wallsocket (with power monitoring)", ["_TZ3000_y4ona9me"]),
            tuya.whitelabel("Nous", "A6Z", "Outdoor smart socket", ["_TZ3000_266azbg3"]),
            tuya.whitelabel("Nedis", "ZBPO130FWT", "Outdoor smart plug (with power monitoring)", ["_TZ3000_3ias4w4o"]),
            tuya.whitelabel("Nous", "A9Z", "Smart ZigBee Socket", ["_TZ3210_ddigca5n"]),
            tuya.whitelabel("Girier", "JR-ZPM01", "Smart Plug", ["_TZ3000_ww6drja5"]),
            tuya.whitelabel("Nous", "A7Z", "Smart ZigBee Socket", ["_TZ3210_rwmitwj4"]),
            tuya.whitelabel("Zbeacon", "TS011F_plug_1_1", "Smart plug (with power monitoring)", ["Zbeacon"]),
            tuya.whitelabel("NEO", "NAS-WR01B", "Smart plug (with electrical measurements)", ["_TZ3000_gjnozsaz"]),
        ],
        ota: true,
        extend: [
            tuya.modernExtend.tuyaOnOff({
                electricalMeasurements: true,
                electricalMeasurementsFzConverter: fzLocal.TS011F_electrical_measurement,
                powerOutageMemory: true,
                indicatorMode: true,
                childLock: true,
                onOffCountdown: true,
            }),
        ],
        configure: async (device, coordinatorEndpoint) => {
            await tuya.configureMagicPacket(device, coordinatorEndpoint);
            const endpoint = device.getEndpoint(1);
            await reporting.bind(endpoint, coordinatorEndpoint, ["genOnOff", "haElectricalMeasurement", "seMetering"]);

            if (!["_TZ3000_okaz9tjs"].includes(device.manufacturerName)) {
                await reporting.rmsVoltage(endpoint, {change: 5});
            }

            await reporting.rmsCurrent(endpoint, {change: 50});

            if (
                !["_TZ3000_0zfrhq4i", "_TZ3000_okaz9tjs", "_TZ3000_typdpbpg", "_TZ3000_ww6drja5", "Zbeacon", "_TZ3000_gjnozsaz"].includes(
                    device.manufacturerName,
                )
            ) {
                // Gives INVALID_DATA_TYPE error for _TZ3000_0zfrhq4i (as well as a few others in issue 20028)
                // https://github.com/Koenkk/zigbee2mqtt/discussions/19680#discussioncomment-7667035
                await reporting.activePower(endpoint, {change: 10});
            }
            await reporting.currentSummDelivered(endpoint);
            const acCurrentDivisor = device.manufacturerName === "_TZ3000_typdpbpg" ? 2000 : 1000;
            endpoint.saveClusterAttributeKeyValue("haElectricalMeasurement", {
                acCurrentDivisor,
                acCurrentMultiplier: 1,
            });
            endpoint.saveClusterAttributeKeyValue("seMetering", {
                divisor: 100,
                multiplier: 1,
            });
            utils.attachOutputCluster(device, "genOta");
            device.save();
        },
    }

[DelBierzo]

Come on, a little help, or will I run out of time to complain if it's broken?

[Koenkk]

Try reading the activePower when a load is attached, if it returns 0 it means the plug doesn't support it or the device is broken (#21250 (comment))

[singler]

I also have _TZ3000_2uollq9d. It works for me fine when I patch tuya.js to detect it as TS011F_plug_3 and add 192 version to energy polling. Recently it was added to herdsman-converter, but it seems it was miss-categorized as plug_1. Currently I run 2.6.2 patched with

6942d6941
<                 "_TZ3000_2uollq9d",
7027a7027
>             { modelID: "TS011F", applicationVersion: 192, priority: -1 },
7043a7044,7047
>              tuya.whitelabel("BSEED", "TS011F_plug_3", "Wall-mounted electrical EU/FR/UK socket with power monitoring", [
>                  "_TZ3000_2uollq9d",
>              ]),
>
7054c7058
<                 metering: (device) => [100, 160].includes(device.applicationVersion) || ["1.0.5\u0000"].includes(device.softwareBuildID), // polling for energy
---
>                 metering: (device) => [100, 160, 192].includes(device.applicationVersion) || ["1.0.5\u0000"].includes(device.softwareBuildID), // polling for energy

and have power & current reporting too

[DelBierzo]

It's not the same; mine is "TZ3210_2uollq9d," so the configuration is probably the same. Thanks for replying anyway.

[Koenkk]

@singler Could you make a PR by clicking here?

[singler]

@singler Could you make a PR by clicking here?

I created a herdsman issue in case we would need to followup and a PR Koenkk/zigbee-herdsman-converters#10575 Koenkk/zigbee-herdsman-converters#10574

[singler]

It's not the same; mine is "TZ3210_2uollq9d," so the configuration is probably the same. Thanks for replying anyway.

oh, sorry, my bad. I would suggest trying out TS011F_plug_3 anyway, as I think I had similar issues when my device was detected as a plug_1. You may also want to add you applicationVersion to metering to see if that helps with power display

[TakissX]

I also have a BSEED "TS011F _TZ3210_2uollq9d", it has been recognized as Tuya "TS011F_plug_1" and everything works as it should. The only problem is that it is not listed as BSEED and does not have its photo.

[DelBierzo]

Thanks for replying. So it's clear mine arrived damaged.
