Windows SDK dependency as NuGet packages

[azchohfi]

Issue: #66

PR Type

What kind of change does this PR introduce?

• Bugfix

What is the current behavior?

Very hard to reference WinMDs.

What is the new behavior?

No work needed to reference WinMDs, but to reference the NuGet Package.

PR Checklist

Please check if your PR fulfills the following requirements:

• Tested code with current supported SDKs
• Pull Request has been submitted to the documentation repository instructions. Link:
• Sample in sample app has been added / updated (for bug fixes / features)
  • Icon has been created (if new sample) following the Thumbnail Style Guide and templates
• Tests for the changes have been added (for bug fixes / features) (if applicable)
• Header has been added to all new source files (run build/UpdateHeaders.bat)
• Contains NO breaking changes

[azchohfi]

We could probably remove build/Install-WindowsSdkISO.ps1 and build/Install-WindowsSdk.ps1

[michael-hawker]

Quick question, otherwise looks good. Did you want me to also validate on another machine? As I realized my laptop isn't on insider.

[michael-hawker]

Was this the part you said wasn't supported anymore? Should we have a comment here calling that this must be set this way and throw an exception in the else case below?

[azchohfi]

We should remove the else clause. It doesn't work. There will be a future PR with a more complex scenario covered.

[azchohfi]

Let's validate it all on Monday.

[michael-hawker]

Nugets from PR worked like a charm on my Insider machine. No large hassle with your instructions, just had one extra thing to do. So, it's now:

1. Install the following

• 18226 or later OS and SDK
• .NET Core preview4
• Suggested to install VS 2019 Preview

2. File New WPF .NET Core project
3. Add Microsoft.Toolkit.Wpf.UI.XamlHost package reference
4. In project, Add -> New Item -> Application Manifest File
5. Add following to compatibility/application section:

      <maxversiontested Id="10.0.18362.0"/>
      <supportedOS Id="{8e0f7a12-bfb3-4fe8-b9a5-48fd50a15a9a}" />

6. Add following to application/windowSettings section:

      <dpiAware xmlns="http://schemas.microsoft.com/SMI/2005/WindowsSettings">true/PM</dpiAware>
      <dpiAwareness xmlns="http://schemas.microsoft.com/SMI/2016/WindowsSettings">PerMonitorV2, PerMonitor</dpiAwareness>

7. Create a Program.cs file with:

namespace WpfCoreTestApp
{
    public static class Program
    {
        /// <summary>
        /// The main entry point for the application.
        /// </summary>
        [STAThread]
        public static void Main()
        {
            using (var xamlApp = new Microsoft.Toolkit.Win32.UI.XamlHost.XamlApplication())
            {
                var appOwnedWindowsXamlManager = xamlApp.WindowsXamlManager;

                var app = new App();
                app.InitializeComponent();
                app.Run();
            }
        }
    }
}

8. Edit the .csproj file and add the following to a PropertyGroup:

    <ApplicationManifest>app1.manifest</ApplicationManifest>
    <StartupObject>WpfCoreTestApp.Program</StartupObject>

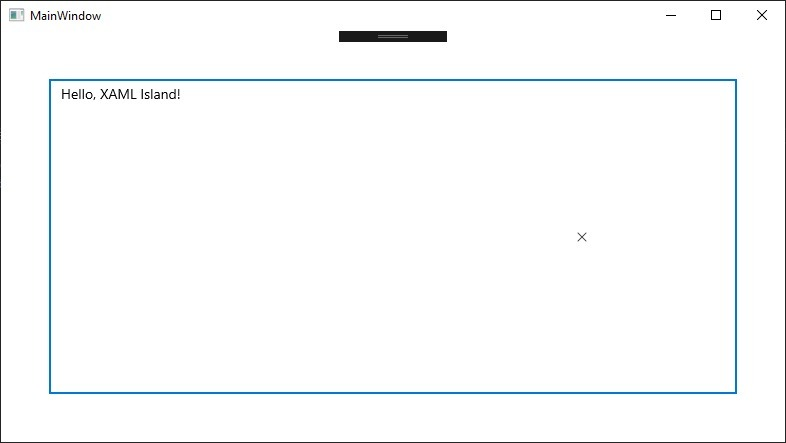

9. Voila! XamlHost in your XAML:

<xamlhost:WindowsXamlHost InitialTypeName="Windows.UI.Xaml.Controls.TextBox" />

[michael-hawker]

Amazing!
