fix dependency panel edges (#6753)

## 📝 Summary

<!--
Provide a concise summary of what this pull request is addressing.

If this PR fixes any issues, list them here by number (e.g., Fixes
#123).
-->
Fixes #6692. Use static ids instead of useId. Reverts a previous lint
fix.

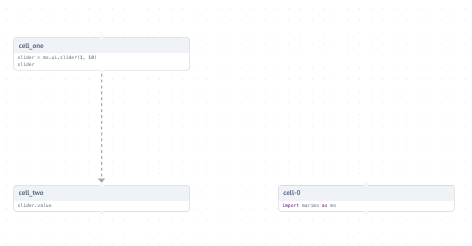

![CleanShot 2025-10-13 at 11 35
05](https://github.com/user-attachments/assets/f67e6e83-b6b2-4302-b3fe-c599cfcfacf5)

## 🔍 Description of Changes

<!--
Detail the specific changes made in this pull request. Explain the
problem addressed and how it was resolved. If applicable, provide before
and after comparisons, screenshots, or any relevant details to help
reviewers understand the changes easily.
-->

## 📋 Checklist

- [x] I have read the [contributor
guidelines](https://github.com/marimo-team/marimo/blob/main/CONTRIBUTING.md).
- [ ] For large changes, or changes that affect the public API: this
change was discussed or approved through an issue, on
[Discord](https://marimo.io/discord?ref=pr), or the community
[discussions](https://github.com/marimo-team/marimo/discussions) (Please
provide a link if applicable).
- [ ] I have added tests for the changes made.
- [x] I have run the code and verified that it works as expected.

Author: Light2Dark

frontend/src/components/dependency-graph/custom-node.tsx

@@ -1,13 +1,18 @@
 /* Copyright 2024 Marimo. All rights reserved. */

 import { useAtomValue } from "jotai";
-import React, { memo, use, useId } from "react";
+import React, { memo, use } from "react";
 import { Handle, Position, useStore } from "reactflow";
 import { TinyCode } from "@/components/editor/cell/TinyCode";
 import { useCellIds } from "@/core/cells/cells";
 import { displayCellName } from "@/core/cells/names";
 import { cn } from "@/utils/cn";
-import { type CustomNodeProps, getNodeHeight } from "./elements";
+import {
+  type CustomNodeProps,
+  getNodeHeight,
+  INPUTS_HANDLE_ID,
+  OUTPUTS_HANDLE_ID,
+} from "./elements";
 import type { LayoutDirection } from "./types";

 function getWidth(canvasWidth: number) {
@@ -37,24 +42,19 @@ export const CustomNode = memo((props: CustomNodeProps) => {
   const reactFlowWidth = useStore(({ width }) => width);
   const edgeMarkers = use(EdgeMarkerContext);

-  const inputOneId = useId();
-  const inputTwoId = useId();
-  const outputOneId = useId();
-  const outputTwoId = useId();
-
   const linesOfCode = cell.code.split("\n").length;
   return (
     <div>
       <Handle
         type="target"
-        id={inputOneId}
+        id={INPUTS_HANDLE_ID}
         data-testid="input-one"
         position={edgeMarkers === "LR" ? Position.Left : Position.Top}
         style={{ background: color }}
       />
       <Handle
         type="source"
-        id={inputTwoId}
+        id={INPUTS_HANDLE_ID}
         data-testid="input-two"
         position={edgeMarkers === "LR" ? Position.Left : Position.Top}
         style={{ background: color }}
@@ -76,14 +76,14 @@ export const CustomNode = memo((props: CustomNodeProps) => {
       </div>
       <Handle
         type="source"
-        id={outputOneId}
+        id={OUTPUTS_HANDLE_ID}
         data-testid="output-one"
         position={edgeMarkers === "LR" ? Position.Right : Position.Bottom}
         style={{ background: color }}
       />
       <Handle
         type="target"
-        id={outputTwoId}
+        id={OUTPUTS_HANDLE_ID}
         data-testid="output-two"
         position={edgeMarkers === "LR" ? Position.Right : Position.Bottom}
         style={{ background: color }}

frontend/src/components/dependency-graph/elements.ts

@@ -19,6 +19,10 @@ export function getNodeHeight(linesOfCode: number) {
   return Math.min(linesOfCode * LINE_HEIGHT + 35, 200);
 }

+// The nodes must have the same handle IDs to ensure edges connect correctly
+export const OUTPUTS_HANDLE_ID = "outputs";
+export const INPUTS_HANDLE_ID = "inputs";
+
 interface ElementsBuilder {
   createElements: (
     cellIds: CellId[],
@@ -93,8 +97,8 @@ export class VerticalElementsBuilder implements ElementsBuilder {
           }
           visited.add(key);
           edges.push(
-            this.createEdge(fromId, toId, "inputs"),
-            this.createEdge(fromId, toId, "outputs"),
+            this.createEdge(fromId, toId, INPUTS_HANDLE_ID),
+            this.createEdge(fromId, toId, OUTPUTS_HANDLE_ID),
           );
         }
       }
@@ -114,8 +118,9 @@ export class TreeElementsBuilder implements ElementsBuilder {
       // Make thicker
       style: { strokeWidth: 2 },
       source: source,
-      sourceHandle: "outputs",
-      targetHandle: "inputs",
+      // Use the same handle ids as the custom node
+      sourceHandle: OUTPUTS_HANDLE_ID,
+      targetHandle: INPUTS_HANDLE_ID,
       target: target,
     };
   }

frontend/src/components/dependency-graph/panels.tsx

@@ -12,7 +12,7 @@ import {
   WorkflowIcon,
   XIcon,
 } from "lucide-react";
-import React, { memo } from "react";
+import React, { memo, useId } from "react";
 import { type Edge, Panel } from "reactflow";
 import { getCellEditorView } from "@/core/cells/cells";
 import type { CellId } from "@/core/cells/ids";
@@ -44,6 +44,8 @@ export const GraphToolbar: React.FC<Props> = memo(
       onSettingsChange({ ...settings, [key]: value });
     };

+    const checkboxId = useId();
+
     const settingsButton = (
       <Popover>
         <PopoverTrigger asChild={true}>
@@ -56,13 +58,13 @@ export const GraphToolbar: React.FC<Props> = memo(
           <div className="flex items-center gap-2">
             <Checkbox
               data-testid="hide-pure-markdown-checkbox"
-              id="hide-pure-markdown"
+              id={checkboxId}
               checked={settings.hidePureMarkdown}
               onCheckedChange={(checked) =>
                 handleSettingChange("hidePureMarkdown", Boolean(checked))
               }
             />
-            <Label htmlFor="hide-pure-markdown">Hide pure markdown</Label>
+            <Label htmlFor={checkboxId}>Hide pure markdown</Label>
           </div>
         </PopoverContent>
       </Popover>
@@ -114,7 +116,7 @@ export const GraphSelectionPanel: React.FC<{
   onClearSelection: () => void;
   edges: Edge[];
   variables: Variables;
-}> = memo(({ selection, edges, variables, onClearSelection }) => {
+}> = memo(({ selection, variables, onClearSelection }) => {
   if (!selection) {
     return null;
   }
