🚨 Errors, Deprecations & Troubleshooting

Not all errors are the same — and not every issue means something is broken.

This card is designed to gracefully handle common errors in your Lovelace configuration or entity state. These are usually minor and expected, and the card will notify you directly in the UI when they occur (for example, a missing entity or invalid value).

However, you might encounter a real bug — something unexpected that breaks functionality and requires further investigation. That’s where troubleshooting comes in.

❗ Error handling

This card includes error handling to prevent visual issues and ensure the UI stays clean and stable. We handle two main categories of errors in the card:

  1. Configuration Errors These occur when the card is incorrectly set up in the Lovelace config. Examples:

    • Missing entity ID
    • Invalid or unsupported attributes
    • Incorrect min/max values

  2. Runtime Errors (Entity State Issues) These happen while the card is running and are related to the entity’s current state. Examples:

    • Entity is not found, unavailable or offline

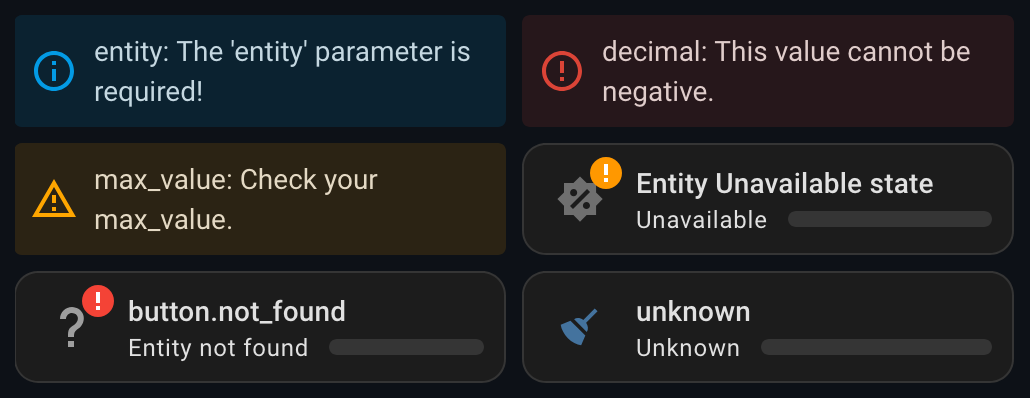

    Show the screenshot (click to expand) ![image](https://raw.githubusercontent.com/francois-le-ko4la/lovelace-entity-progress-card/main/docs/images/errors.png)

⚠️ Deprecated Options

Over time, some configuration options have been deprecated in favor of more flexible or clearer alternatives. While the card tries to maintain backward compatibility, these options may stop working in future releases.

In the development of this card, we strive to avoid breaking changes as much as possible. When such changes are unavoidable, we do our best to support and guide users through the transition.

In this context, we have two types of deprecated options:

  • Removed: These were removed to prevent duplication and potential conflicts with the new system. It was important to remove them for stability reasons.
  • Deprecated but still active options: These options may have been used in many different cards, and migrating them requires reviewing the configurations of all those cards. Therefore, we allow time before disabling them, provide a system to detect if you are affected, and will remove them later.
Option / Value Status Replacement / Recommended Action Since version Current Behavior
navigate_to Removed Use tap_action: navigate v1.2.0 Ignored, console warning
show_more_info Removed Use tap_action: more-info v1.2.0 Ignored, console warning
theme: 'battery' Deprecated Use optimal_when_xxx v1.1.8-11 Still works, shows warning
theme: 'cpu' Deprecated Same as above v1.1.8-11 Still works, shows warning
theme: 'memory' Deprecated Same as above v1.1.8-11 Still works, shows warning

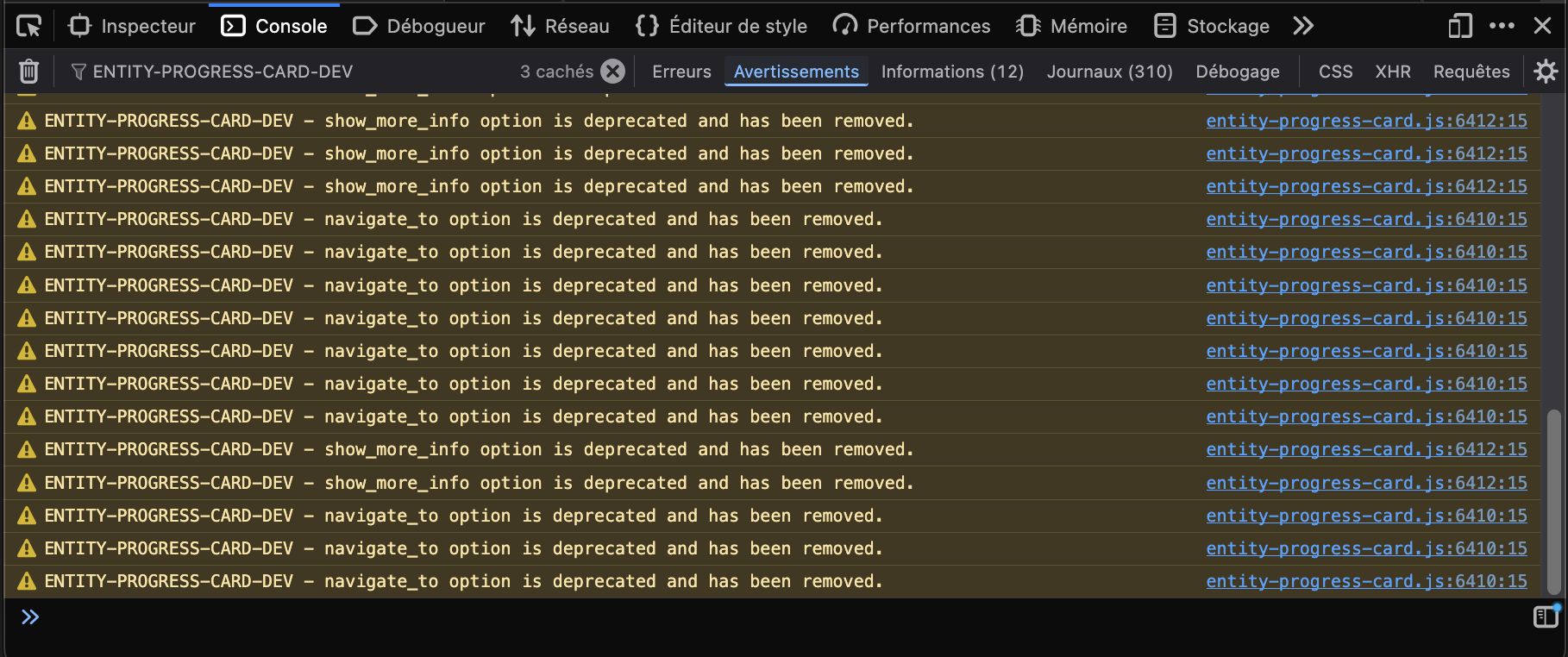

Show the screenshot (click to expand) deprecated

🐞 Troubleshooting

Introduction

Despite all efforts to provide a stable and bug-free card, you might still encounter an issue.

Important

Don't panic! And above all, do not delete your dashboards!

This card does not alter your existing configuration. It only displays entities — nothing is modified, removed, or broken in your actual setup.

✅ What to do?

Try common quick checks first

  • Card not loading?
    ➡️ Ensure the resource is properly added to Lovelace.

  • HACS not detecting the card?
    ➡️ Try clearing your browser cache or restarting Home Assistant.

  • Still not working?
    ➡️ Open your browser’s JavaScript console to check for any errors.

    How to open the JavaScript console (click to expand)

    🦊 Firefox

    • Method 1: Keyboard Shortcut
      • Press F12 or Ctrl + Shift + K (Mac: ⌘ + ⌥ + K)
    • Method 2: Menu Navigation
      • Click the ≡ menu button (top-right)
      • Go to Web Developer → Web Console

    🌐 Chrome / Chromium

    • Method 1: Keyboard Shortcut
      • Press F12 or Ctrl + Shift + J (Mac: ⌘ + ⌥ + J)
    • Method 2: Menu Navigation
      • Click the ⋮ three-dot menu (top-right)
      • Go to More tools ➡️ Developer tools
      • Select the Console tab

    🧭 Safari

    • Method 1: Keyboard Shortcut
      • Press Mac: ⌘ + ⌥ + C
    • Method 2: Menu Navigation
      Enable the Develop menu first (if not already enabled):
      • Go to Safari ➡️ Preferences ➡️ Advanced
      • Check Show Develop menu in menu bar
      • Click Develop ➡️ Show JavaScript Console

    🐘 Opera

    • Method 1: Keyboard Shortcut
      Press Ctrl + Shift + I (Mac: ⌘ + ⌥ + I)
    • Method 2: Menu Navigation
      Click the O menu button (top-left)
      Go to Developer ➡️ Developer tools
      Select the Console tab

    🧱 Edge

    • Method 1: Keyboard Shortcut
      Press F12 or Ctrl + Shift + I (Mac: ⌘ + ⌥ + I)
    • Method 2: Menu Navigation
      Click the ⋯ three-dot menu (top-right)
      Go to More tools ➡️ Developer tools
      Select the Console tab

Gather some useful information

  • Home Assistant version
  • Browser used
  • YAML configuration snippets (if relevant)
  • Any visible error messages (from the console or logs)

Open an issue on GitHub

You don’t need to be a developer to report an issue! Whether you're a beginner or an advanced user, your feedback is valuable!

Note

When opening an issue, try to include as much information as possible.

The more context you provide, the faster and more accurately I can help - we’ll troubleshoot it together!

To help you out, I’ve set up a simple system that asks you the right questions and guides you through the process of creating a useful issue.

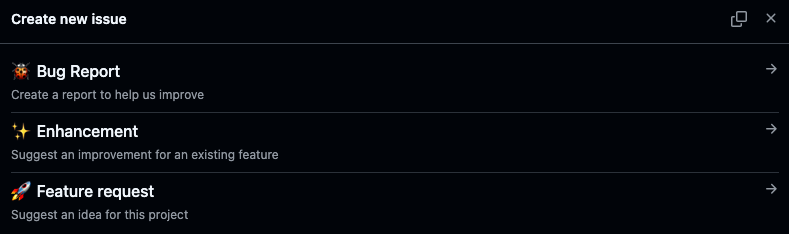

Show the screenshot (click to expand) create issue

(Optional) roll back

If you recently updated the card and the issue started afterward, you can:

  • roll back to the previous working version using HACS;
  • check if a patch or fix is already available;
  • wait for an update — your dashboards will remain intact.

This troubleshooting guide is inspired by open source best practices.
