Symbols

[artf]

Hi guys,
in the past few days, I've started working on this WIP branch to introduce a new feature in GrapesJS: Symbols.
The concept of Symbols is already quite famous, like in visual design tools (eg. Sketch), and they should allow users to reuse common elements across pages.

GrapesJS allows already the reuse of styles (CSS) by using Classes, Symbols will introduce also the reuse of the structure (HTML). By editing children, contents, props of the main Symbol, will reflect these changes to all connected instances.

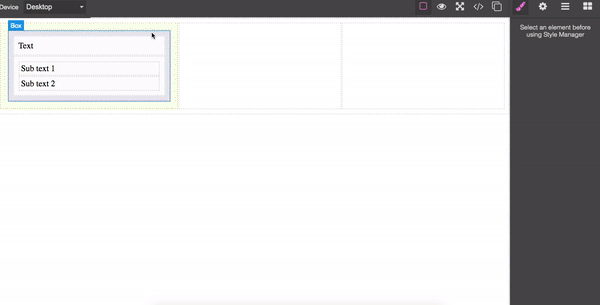

The approach that I'd like to keep trying, differently from other Symbol implementations I've seen around, is to maintain a one-way binding between the main Symbols and their instances. That means if you update the main Symbol, the changes will propagate to their corresponding instances and not vice-versa. This approach should guarantee instances to be overridable by design, which means the user will be able to change the Symbol's instances independently from the main one. This behavior can also be observed from this GIF (codepen demo)

The code

The code didn't change that much and all the changes can be easily merged without breaking the current behavior as the Symbol is created only on request (for now, from Component.clone method). I have to say that I didn't though yet about public APIs and quite sure won't introduce any UI changes, the feature should be activated via API, all you need is a simple command and decide how/where to place its activation (panels, toolbar, etc.). Here an example of a simple command to clone the component as a Symbol (+ button for the options panel)

// Command
editor.Commands.add('clone-symbol', (ed) => {
  const main = ed.getSelected();
  const child = main.clone({ symbol: 1 });
  const at = main.index() + 1;
  main.parent().append(child, { at });
});
// Button
editor.Panels.addButton('options', {
  id: 'clone-symb',
  className: 'fa fa-clone',
  command: 'clone-symbol',
  attributes: { title: 'Clone as Symbol' }
});

How Symbols are identified

The Component identified as Symbol will have a new array property __symbol containing the reference to all of its instances. All Symbol's instances will have instead the __symbolOf property, pointing to the main symbol component.
This approach allows also having nested Symbols.
Below the pseudo-code of the Component Definition:

ComponentX { // Main Symbol component
  ... other props
  __symbol: [ComponentA, ComponentB],
}

ComponentA { // Symbol instance of ComponentX
  ... other props
  __symbolOf: ComponentX,
}
ComponentB { // Symbol instance of ComponentX
  ... other props
  __symbolOf: ComponentX,
}

Conclusions

Obviously, this feature is still far from being complete and stable, I've noticed already a few weird behaviors in conjunction with the UndoManager but those problems can be fixed. The thing I have to see if the chosen approach works in a real-life scenario and makes sense for others, so if you have time, try to play with the demo and report any weird behaviors/unusual cases.

[micker]

oh very cool !

[BerkeAras]

👍 A very nice feature, good work @artf 😄

[abozhinov]

@artf Nice feature! Good job. It will be nice if you have Symbols like Webflow. Users are able to share symbols between pages and when updating symbols the changes apply to all places where you have the symbol.

[artf]

@abozhinov current Symbols already work in that way, I just didn't have time to create public API and properly document them.

[abozhinov]

Can you share some sample code if you have one? In my case user should have the option to create a symbol and to store this symbol in the database. After that have a list with all symbols and to dropping the symbol inside the page where you want.

[abozhinov]

@artf I start playing with Symbols but without success. https://codepen.io/abozhinov/pen/rNpNQBq just use your example with the last version of GrapesJS.

[abozhinov]

@artf can you give me some advice on how to make it works.

[artf]

@abozhinov Symbols are internally disabled at the moment, if you want to try them you should enable them first

plugins: [
  (editor) => editor.getModel().set('symbols', true),
]

Anyway, I'd not suggest using them before having the proper public API. Right now the example doesn't store them properly as main symbols should not be added/stored inside page components.
